Removal Procedure

  1. Remove the endgate window latch support. Refer to LATCH SUPPORT REPLACEMENT - END GATE WINDOW .
  2. Disconnect the electrical connectors, as needed.
  3. Remove the clip that retains the endgate lock cylinder to the endgate.

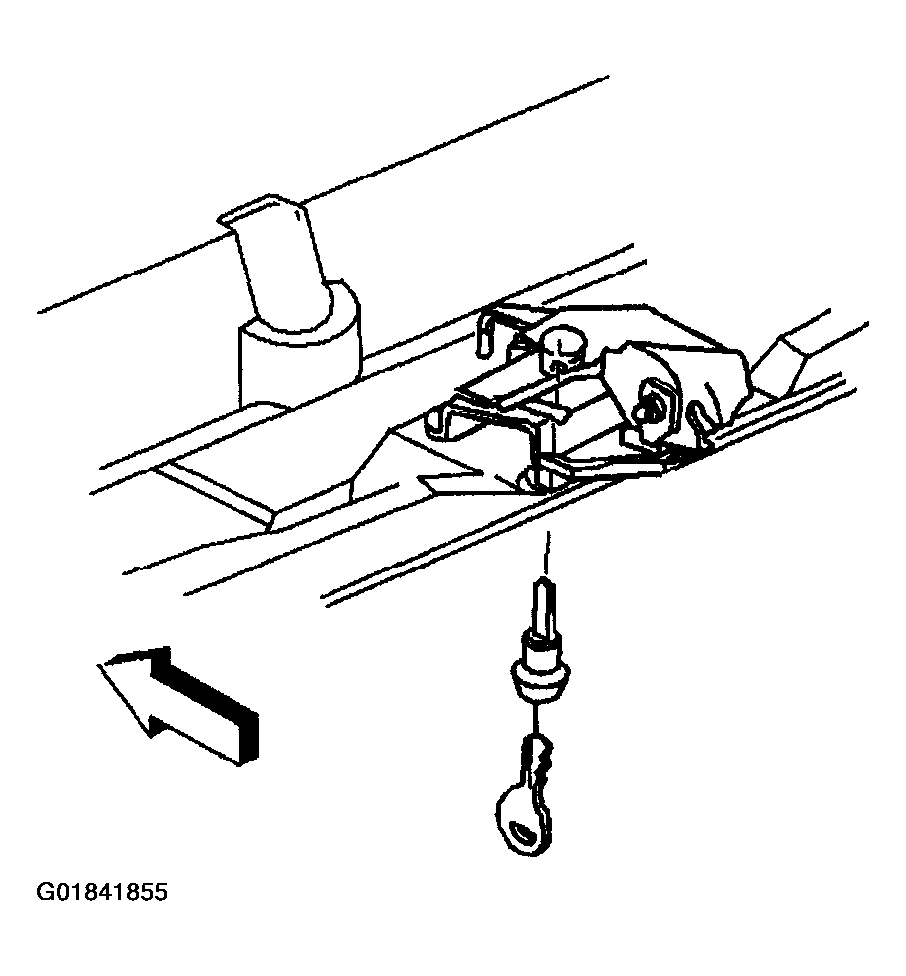

    Fig 1: Locating Endgate Lock Cylinder Components
    G01841855Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock cylinder from the endgate.
