Installation Procedure

  1. Install the lock cylinder to the endgate.
  2. Install the clip that retains the endgate lock cylinder to the endgate.

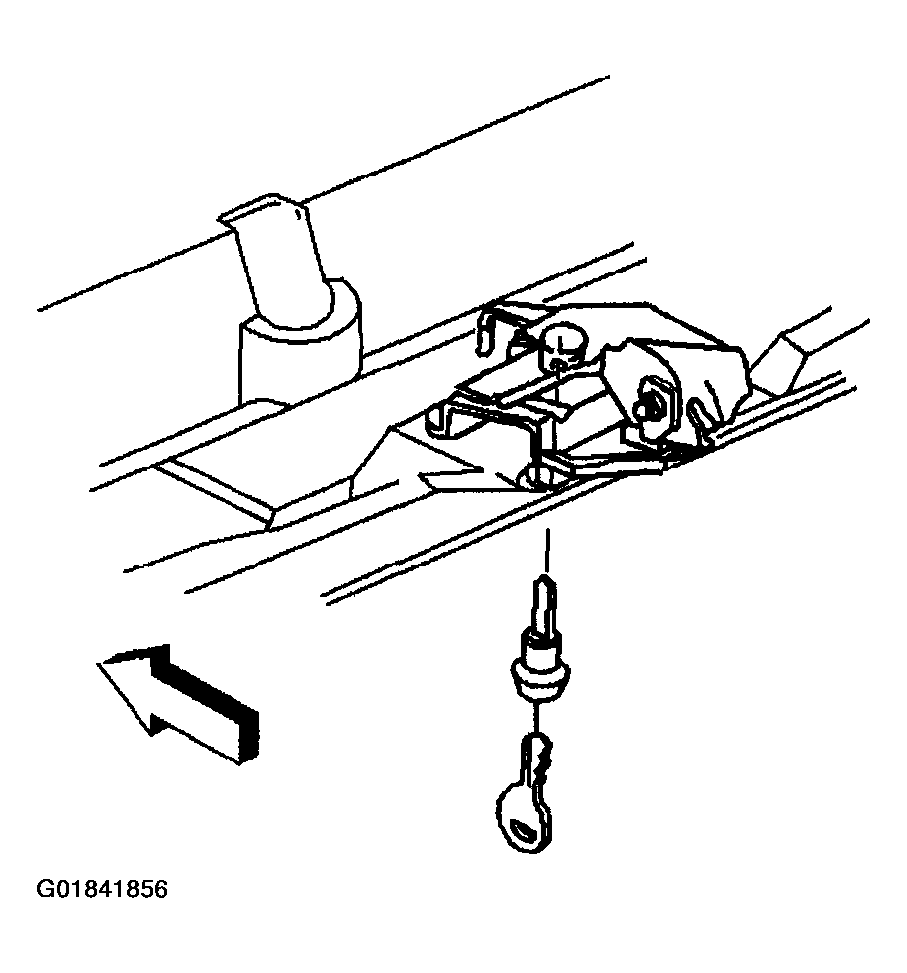

    Fig 1: Locating Endgate Lock Cylinder Components
    G01841856Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors, as needed.
  4. Install the endgate window latch support. Refer to LATCH SUPPORT REPLACEMENT - END GATE WINDOW .
