Removal Procedure

  1. Remove the endgate cover. Refer to END GATE COVER REPLACEMENT .
  2. Disconnect the electrical connectors, as needed.

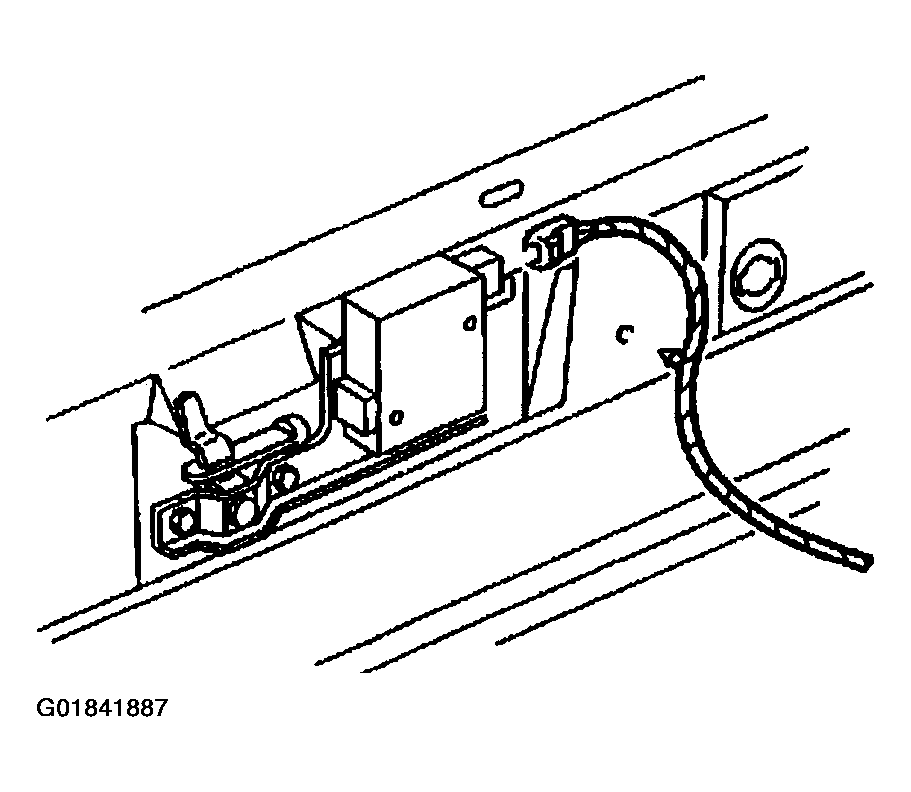

    Fig 1: Locating Rear Compartment Lid Lock Actuator
    G01841887Courtesy of GENERAL MOTORS CORP.
  3. Drill out the rivets that retain the endgate window release actuator to the endgate cover.
  4. Remove the endgate window release actuator from the endgate cover.
