Installation Procedure

  1. Install the endgate window release actuator to the endgate cover.
  2. Install the rivets that retain the endgate window release actuator to the endgate cover.
  3. Connect the electrical connectors, as needed.

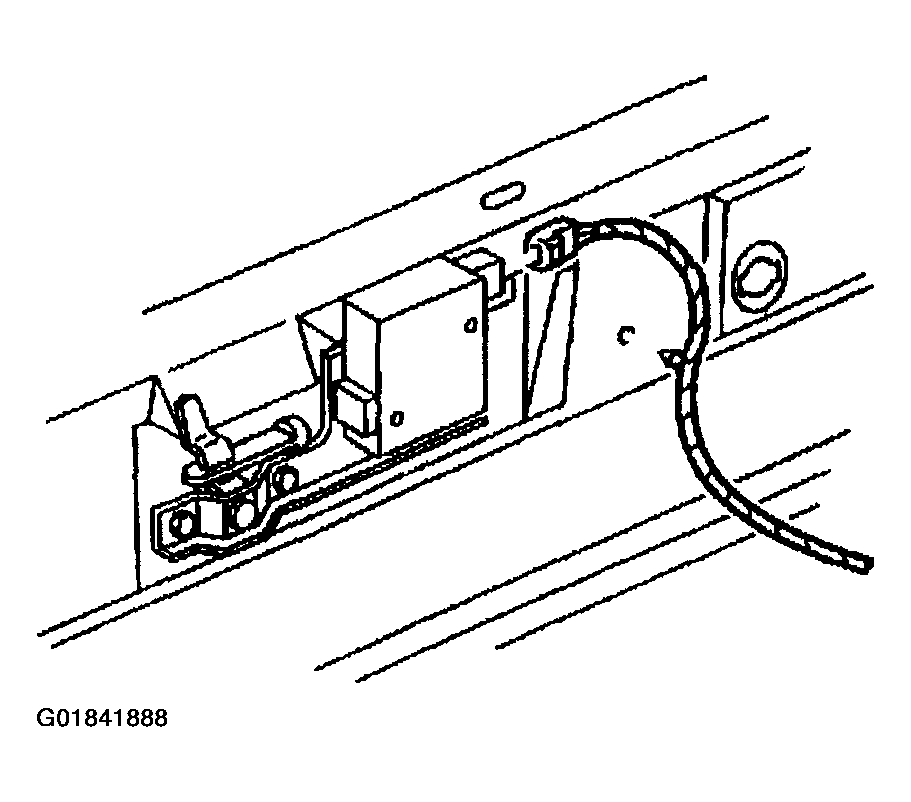

    Fig 1: Locating Rear Compartment Lid Lock Actuator
    G01841888Courtesy of GENERAL MOTORS CORP.
  4. Install the endgate cover. Refer to END GATE COVER REPLACEMENT .
