Installation Procedure

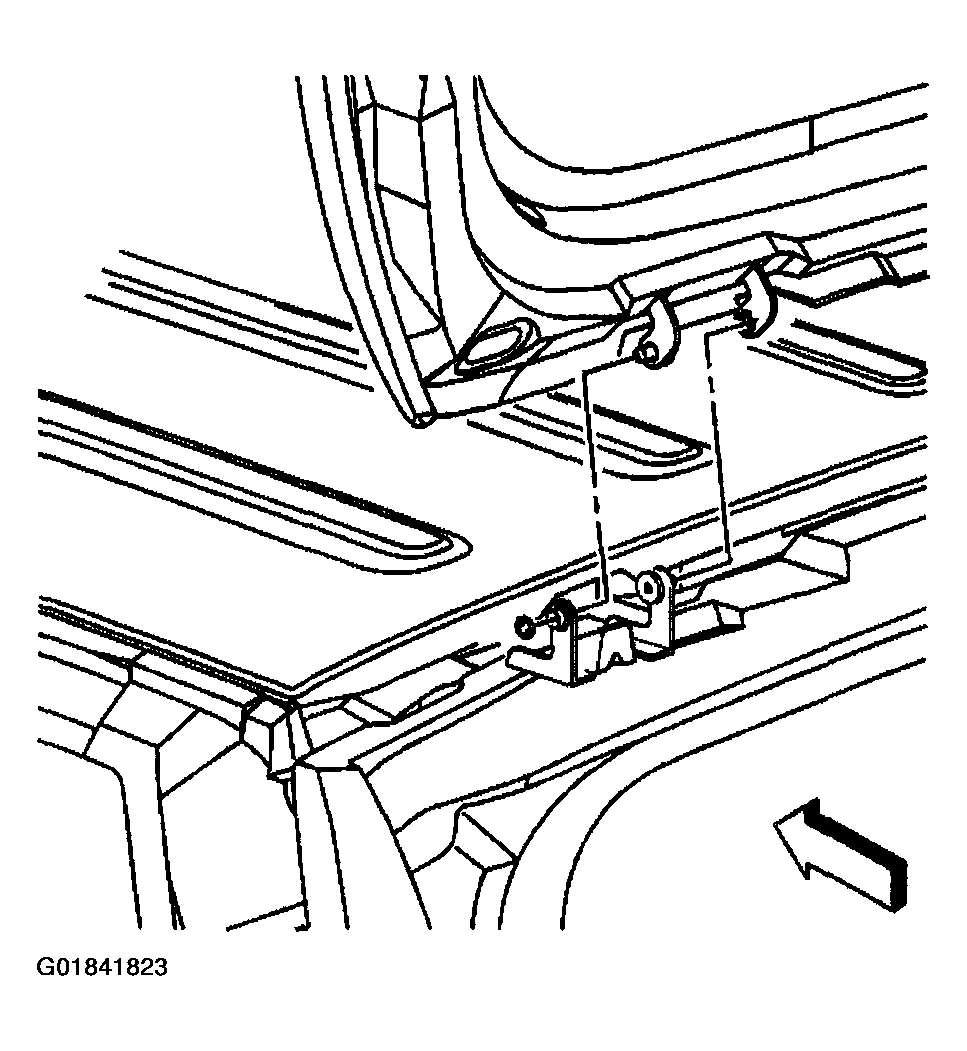

- With an assistant, install the liftgate by sliding the liftgate hinge ears to the left to rest on the pins.
- Install the hinge pins.
Courtesy of GENERAL MOTORS CORP.
- Install the hinge pin retaining clips.
- Install the liftgate struts. Refer to STRUT REPLACEMENT - LIFT GATE .
- Connect the washer fluid hose.
- Connect the electrical connectors, as needed.
- Install the roof rear header garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER
in INTERIOR TRIM article.
- Install the liftgate window. Refer to WINDOW REPLACEMENT - LIFT GATE .
