Removal Procedure

  1. Open the liftgate.
  2. Remove the screw that retains the liftgate quarter upper applique to the liftgate.
  3. Close the liftgate.
  4. Slide the applique upward in order to release the applique from the liftgate.
  5. Remove the liftgate quarter upper applique from the liftgate.

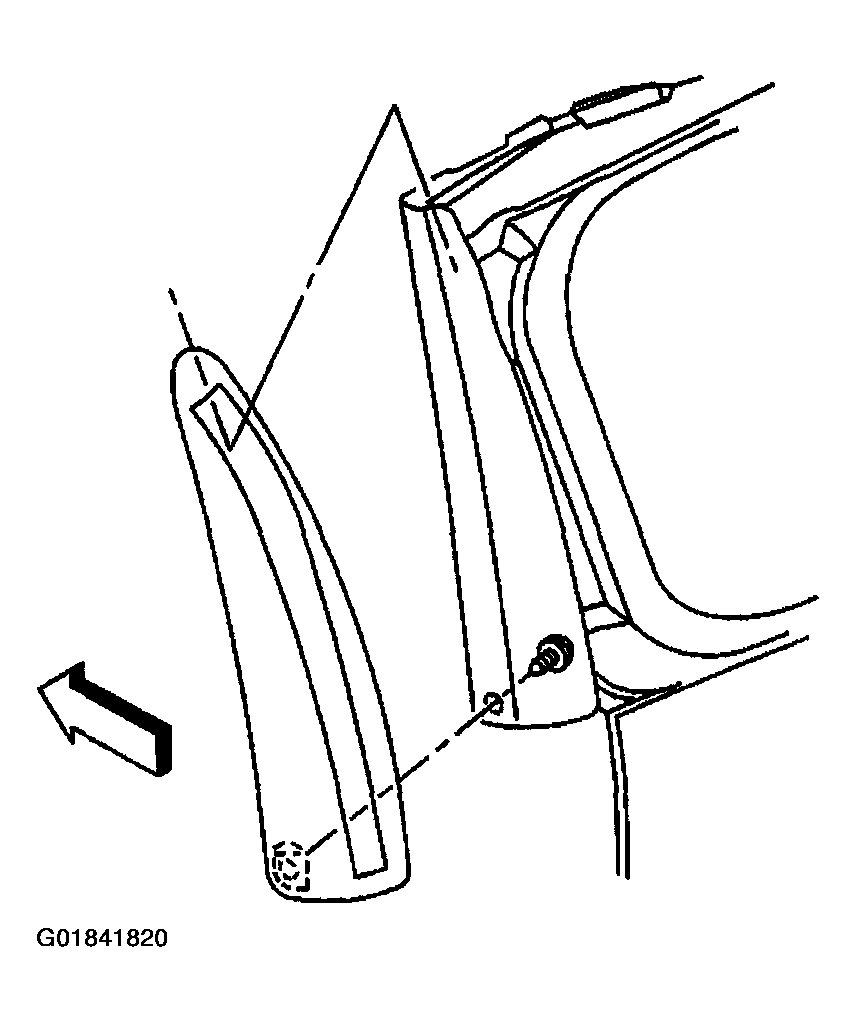

    Fig 1: Locating Lift Gate Applique
    G01841820Courtesy of GENERAL MOTORS CORP.
