Removal Procedure

  1. Remove the liftgate window latch. Refer to LATCH REPLACEMENT - LIFT GATE WINDOW .
  2. Disconnect the electrical connectors as needed.
  3. Mark the location of the liftgate window latch support in order to ensure proper alignment during installation.
  4. Remove the bolts that retain the liftgate window latch support to the liftgate.

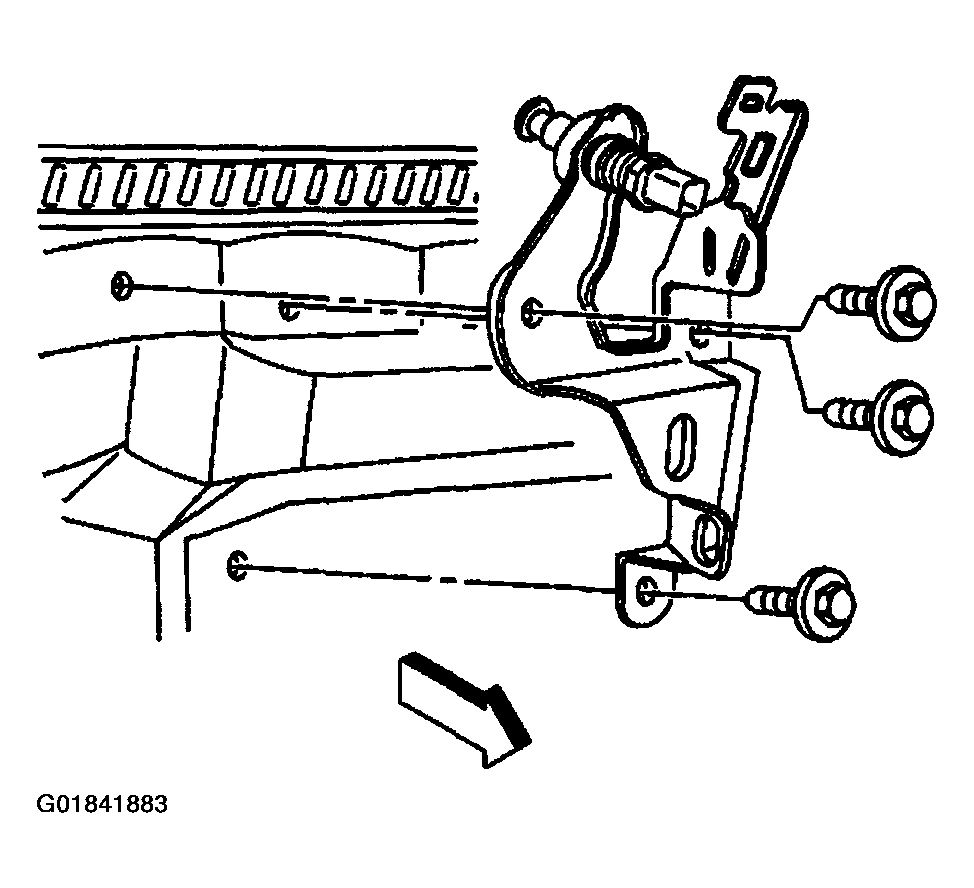

    Fig 1: Locating Endgate Window Latch Components
    G01841883Courtesy of GENERAL MOTORS CORP.
  5. Remove the liftgate window latch support from the liftgate.
