Removal Procedure

  1. Remove the endgate window latch. Refer to LATCH REPLACEMENT - END GATE WINDOW .
  2. Disconnect the electrical connectors as needed.
  3. Mark the location of the endgate window latch support in order to ensure proper alignment during installation.
  4. Remove the bolts that retain the endgate window latch support to the liftgate.

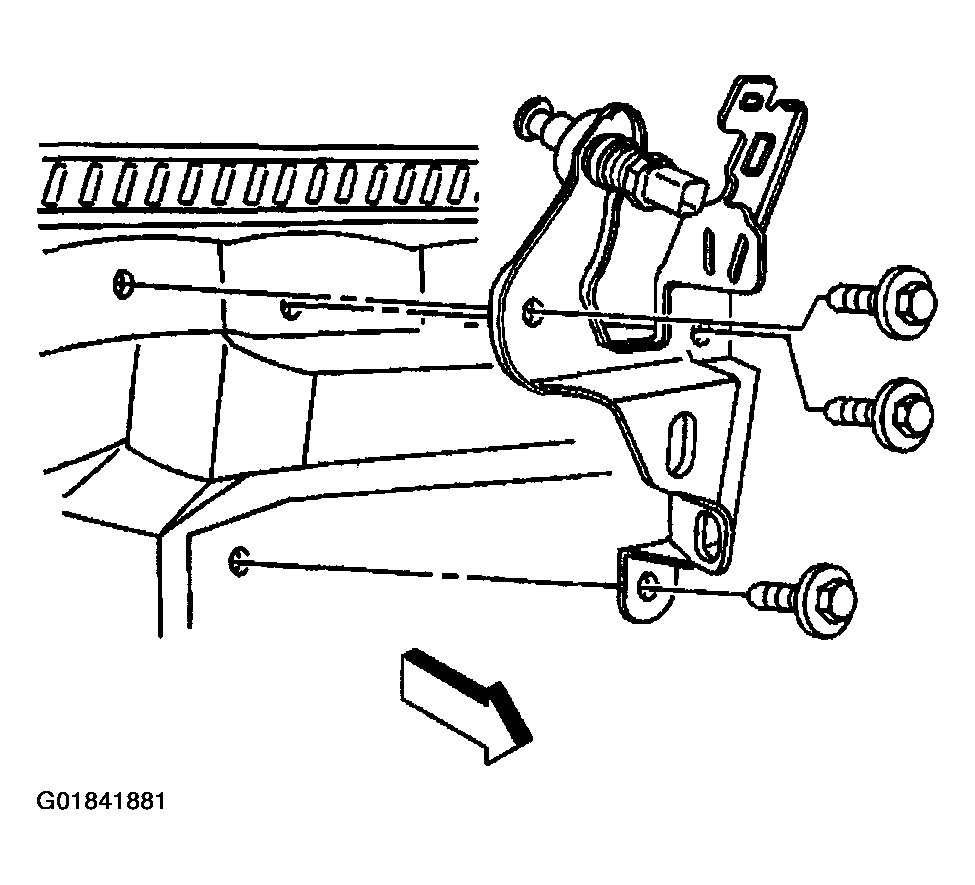

    Fig 1: Locating Endgate Window Latch Components
    G01841881Courtesy of GENERAL MOTORS CORP.
  5. Remove the endgate window latch support from the endgate.
