Removal Procedure

  1. Remove the bellcrank. Refer to BELLCRANK REPLACEMENT - LIFT GATE .
  2. Disconnect the electrical connectors, as needed.
  3. Remove the screws that retain the liftgate latch to the liftgate.

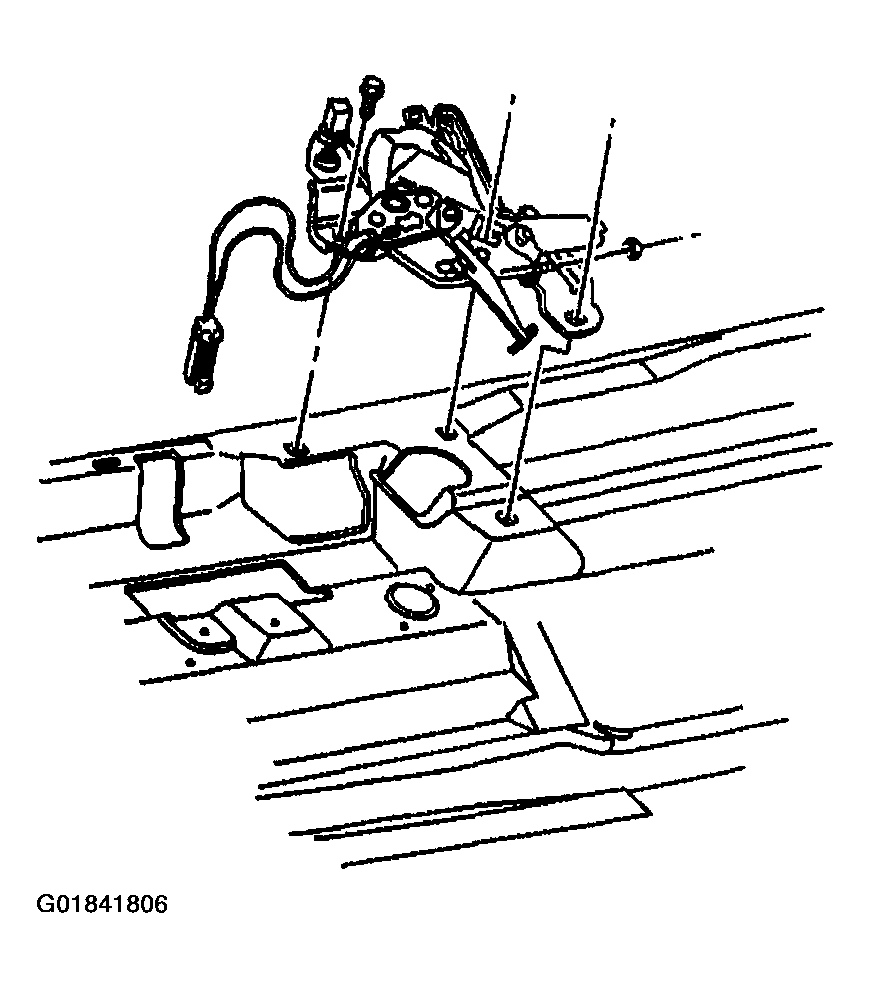

    Fig 1: Identifying Lift Gate Latch
    G01841806Courtesy of GENERAL MOTORS CORP.
  4. Remove the liftgate latch from the liftgate.
