Installation Procedure

  1. Install the liftgate window latch.

    Ensure that the window latch is properly aligned with the marks made during disassembly.

    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the nuts that retain the liftgate window latch to the latch support.

    Tighten

    Tighten the nuts to 10 N.m (88 lb in).

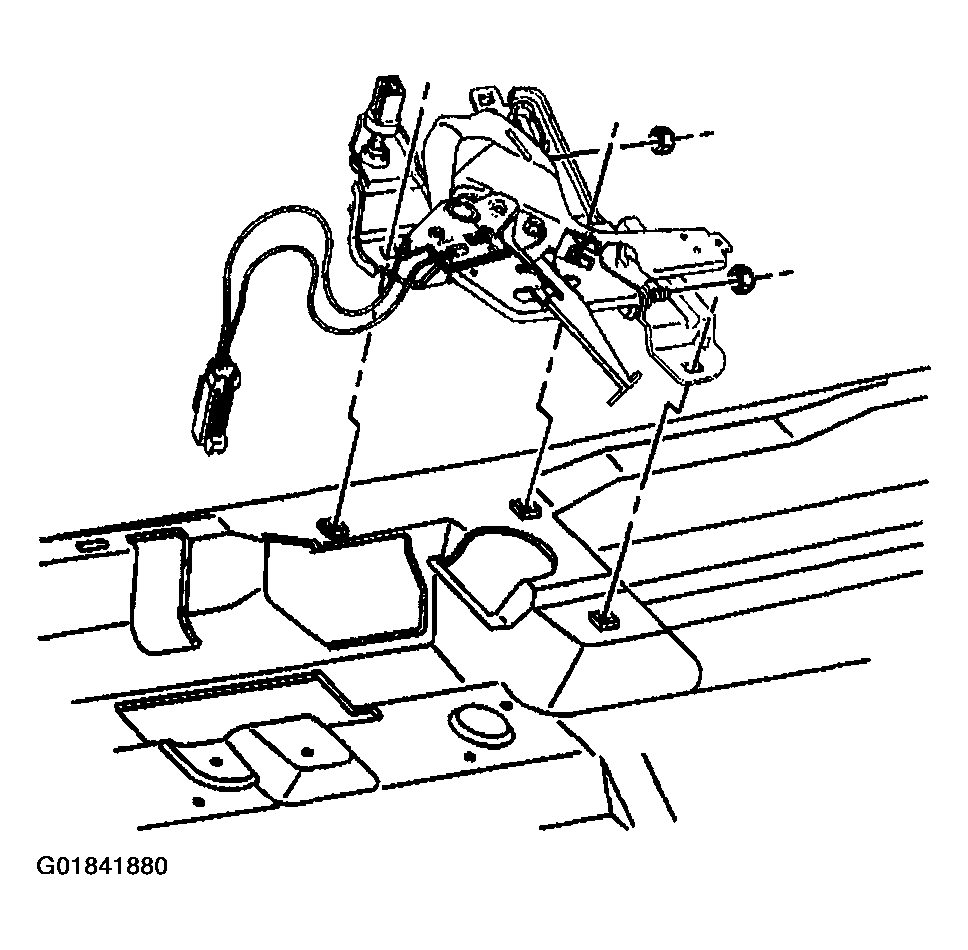

    Fig 1: Locating Liftgate Window Latch Components
    G01841880Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors, as needed.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
