Removal Procedure

  1. Open the endgate.
  2. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  3. Remove the endgate latch rod from the endgate latch.
  4. Remove the bolts that retain the endgate latch to the endgate.

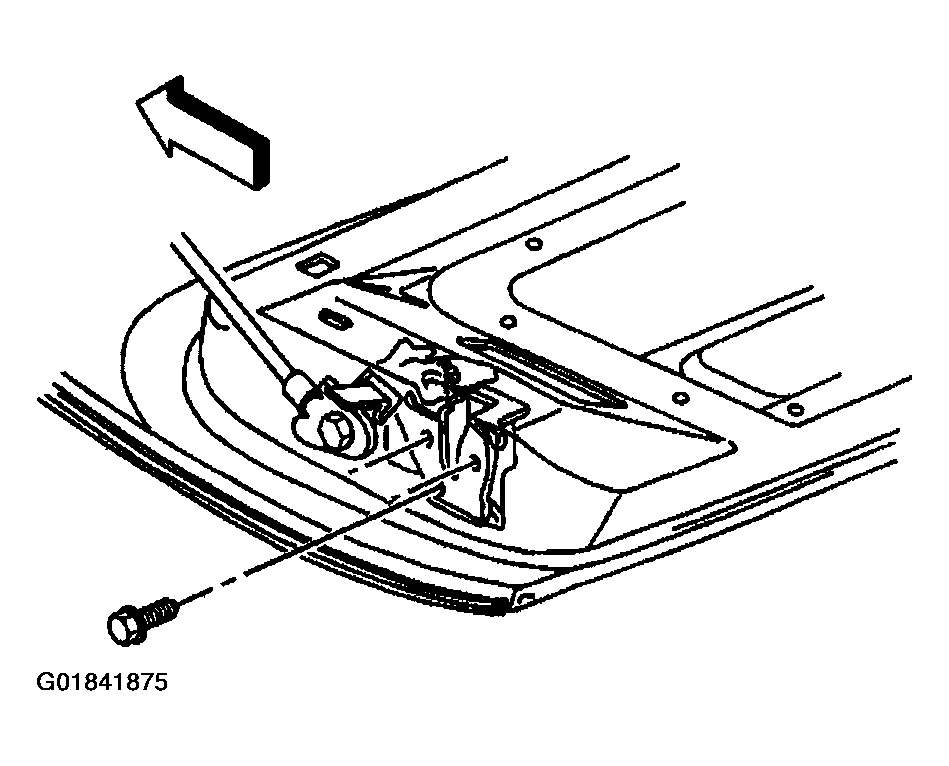

    Fig 1: Locating Endgate Latch-To-Endgate Bolts
    G01841875Courtesy of GENERAL MOTORS CORP.
  5. Remove the endgate latch from the vehicle.
