Installation Procedure

  1. Install the endgate latch to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the bolts that retain the endgate latch to the endgate.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

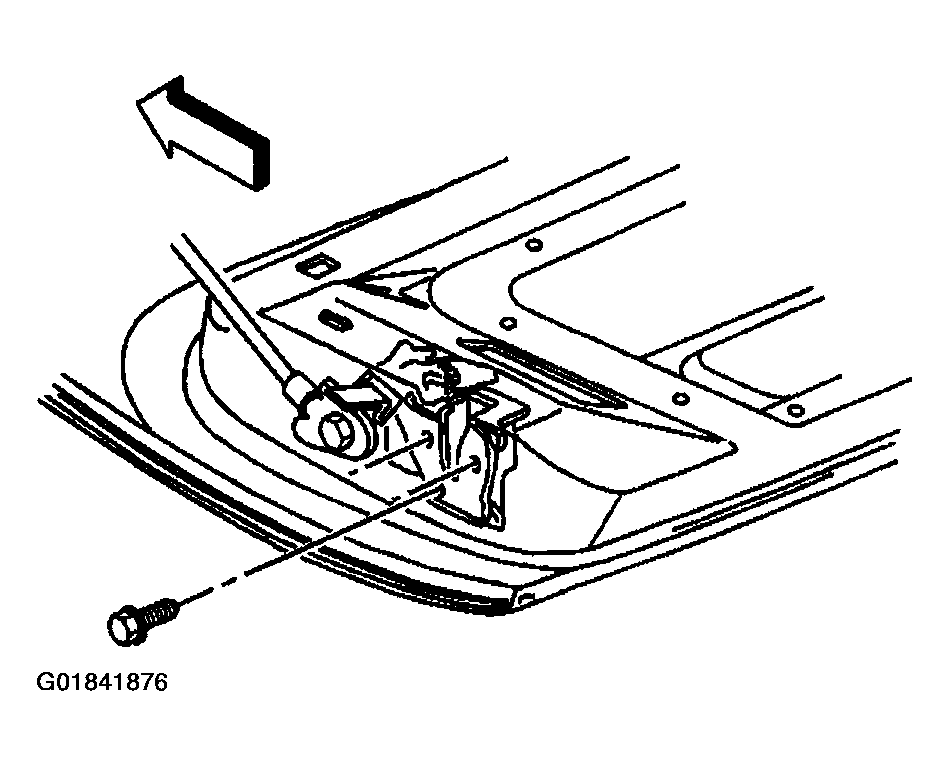

    Fig 1: Locating Endgate Latch-To-Endgate Bolts
    G01841876Courtesy of GENERAL MOTORS CORP.
  3. Install the endgate latch rod to the endgate latch.
  4. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
