Removal Procedure

  1. Remove the endgate cover. Refer to END GATE COVER REPLACEMENT .
  2. Mark the location of the endgate window latch in order to ensure proper alignment at installation.
  3. Disconnect the electrical connectors, as needed.
  4. Remove the nuts that retain the endgate window latch to the endgate window latch support.

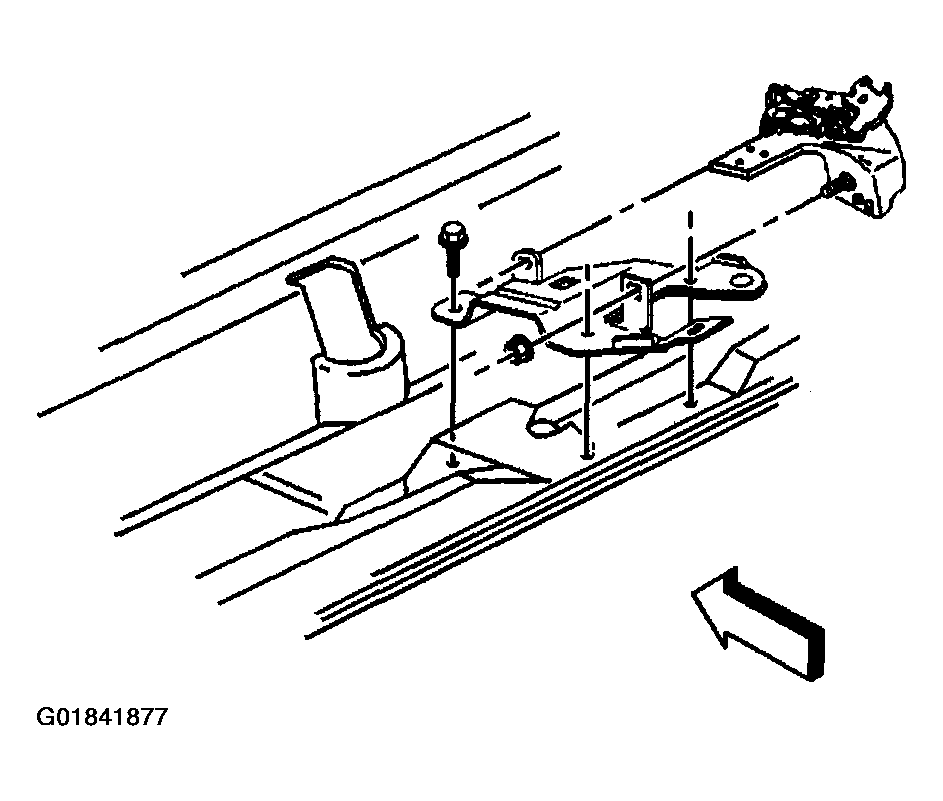

    Fig 1: Locating Endgate Window Latch Components
    G01841877Courtesy of GENERAL MOTORS CORP.
  5. Remove the endgate window latch from the endgate.
