Installation Procedure

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  1. Install the latch assembly nut or nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

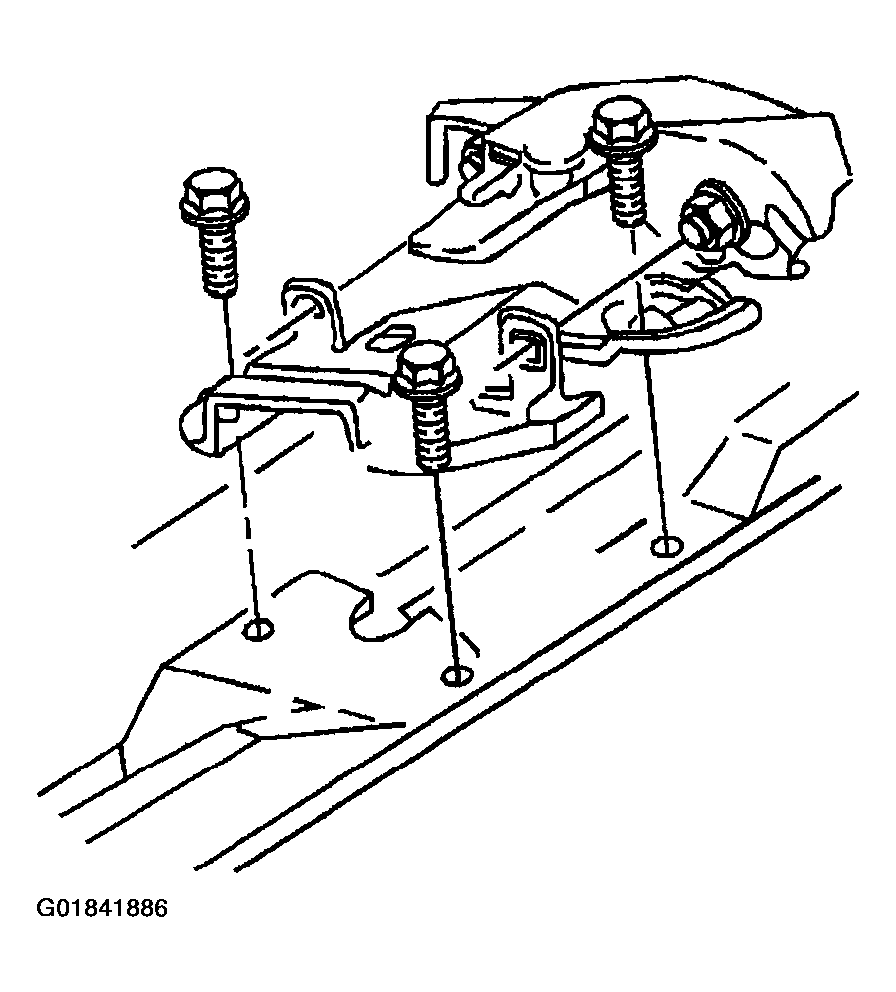

    Fig 1: Locating Window Latch Assembly
    G01841886Courtesy of GENERAL MOTORS CORP.
  2. Install the endgate cover (if removed). Refer to END GATE COVER REPLACEMENT .
  3. Install the endgate or the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  or TRIM PANEL REPLACEMENT - LIFT GATE .
