Removal Procedure

  1. Remove the endgate. Refer to END GATE REPLACEMENT (PICKUP)  or END GATE REPLACEMENT (UTILITY) .
  2. Remove the bolts that retain the pickup box endgate hinges to the endgate.
  3. Remove the pickup box endgate hinges from the endgate.

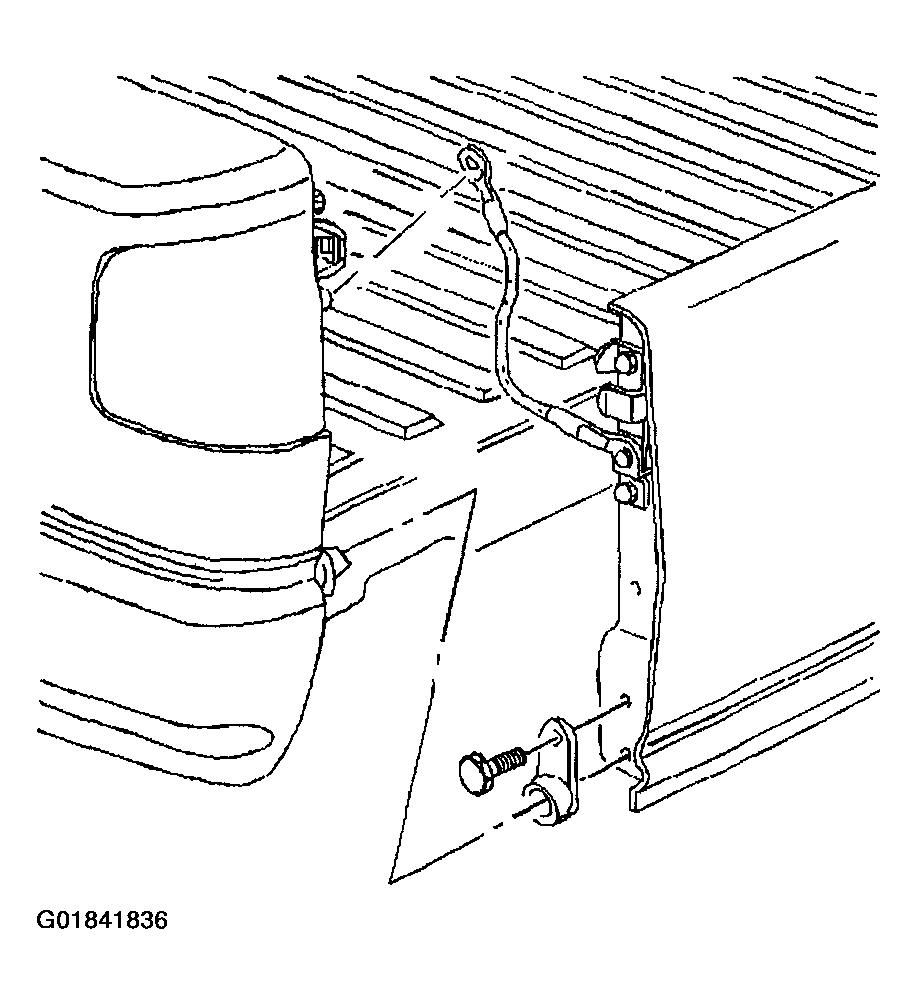

    Fig 1: Locating Pickup Box Endgate Hinge Components
    G01841836Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the pickup box endgate hinges to the pickup box.
  5. Remove the pickup box endgate hinges from the pickup box.

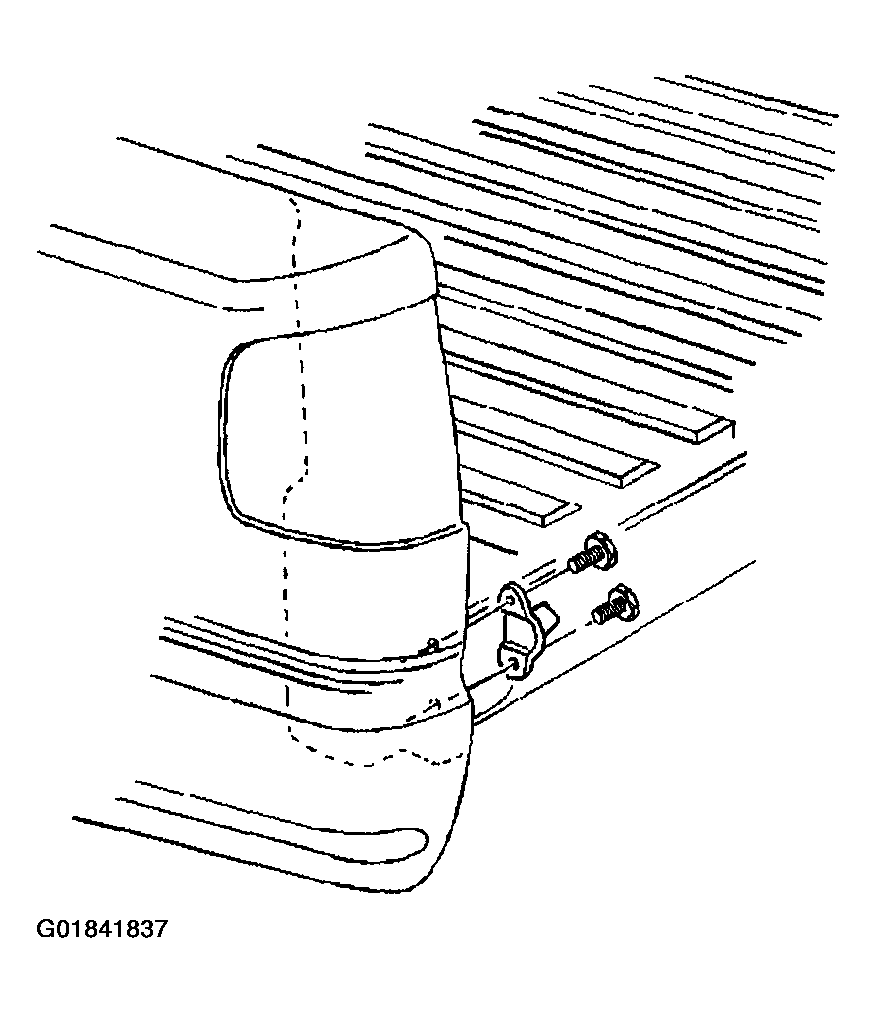

    Fig 2: Locating Pickup Box Endgate Hinge-To-Pickup Box
    G01841837Courtesy of GENERAL MOTORS CORP.
