Installation Procedure

Install the pickup box endgate hinges to the pickup box.

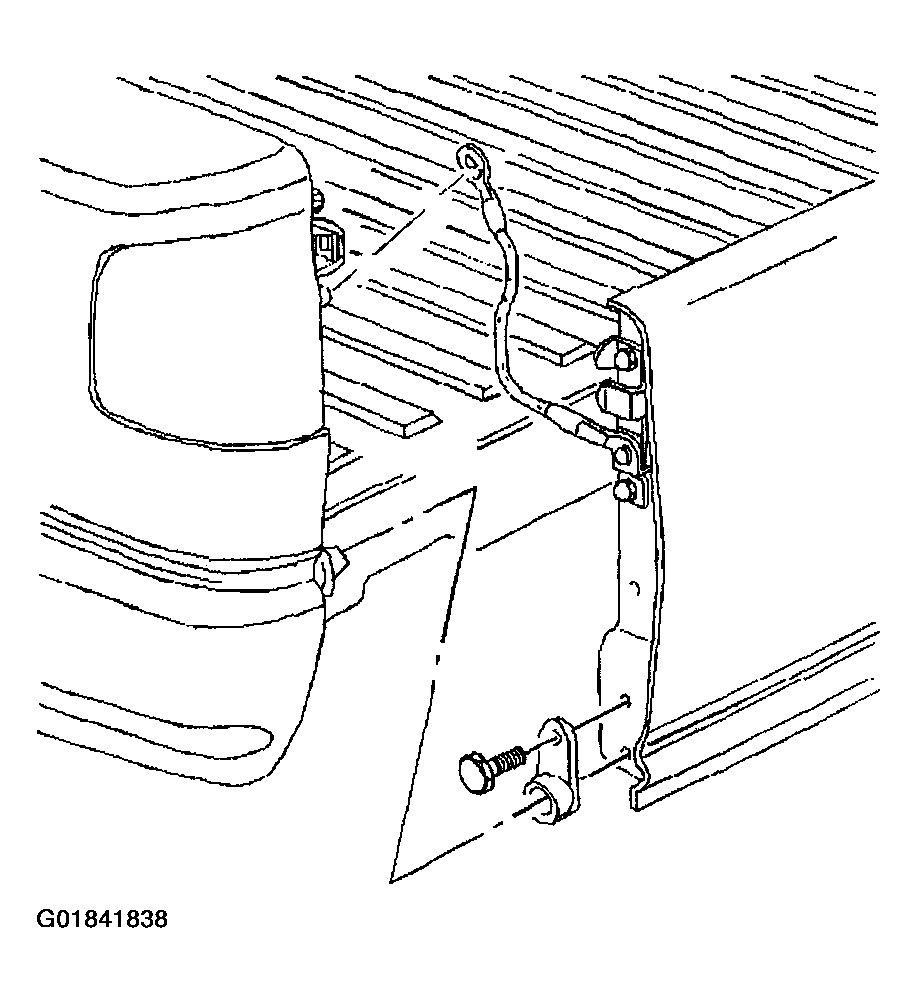

Fig 1: Locating Pickup Box Endgate Hinge Components
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
Install the bolts that retain the pickup box endgate hinges to the pickup box.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).

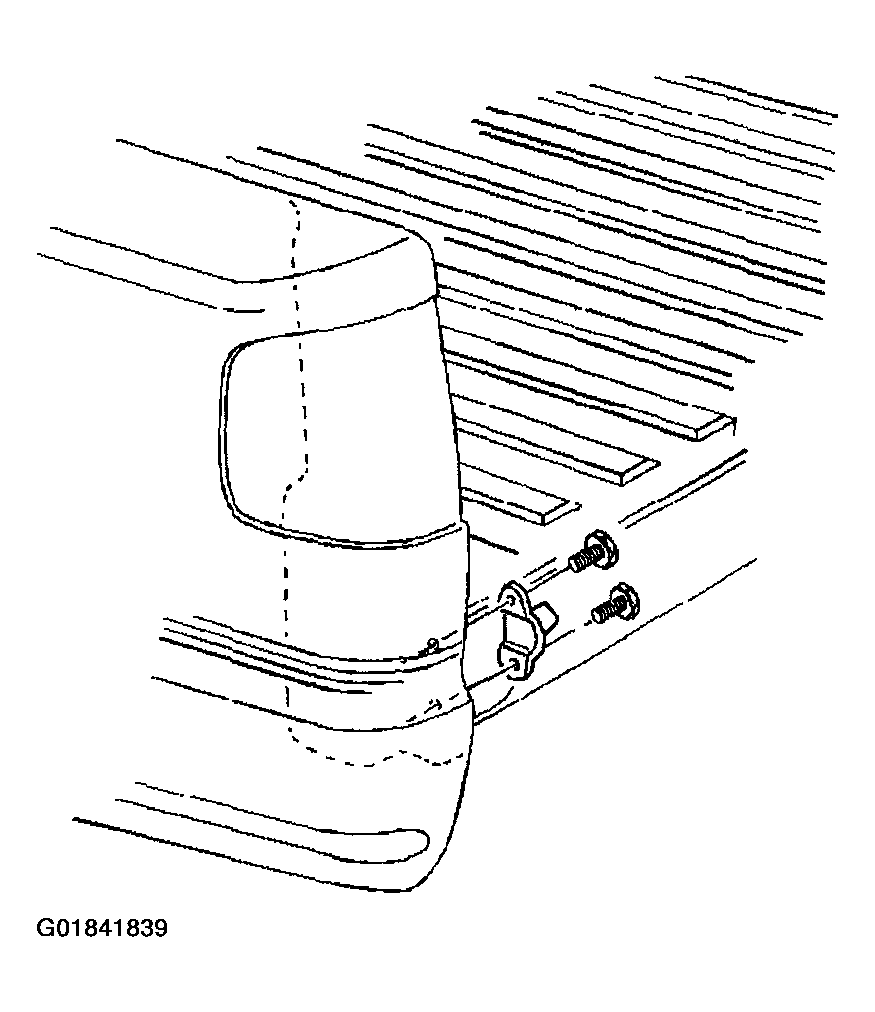

Fig 2: Locating Pickup Box Endgate Hinge-To-Pickup Box
Courtesy of GENERAL MOTORS CORP.
Install the pickup box endgate hinges to the endgate.
Install the bolts that retain the pickup box endgate hinges to the endgate.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).
Install the endgate. Refer to END GATE REPLACEMENT (PICKUP) or END GATE REPLACEMENT (UTILITY) .
