Removal Procedure

  1. Remove the handle grip screws.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  3. Release the liftgate handle rod retainer.

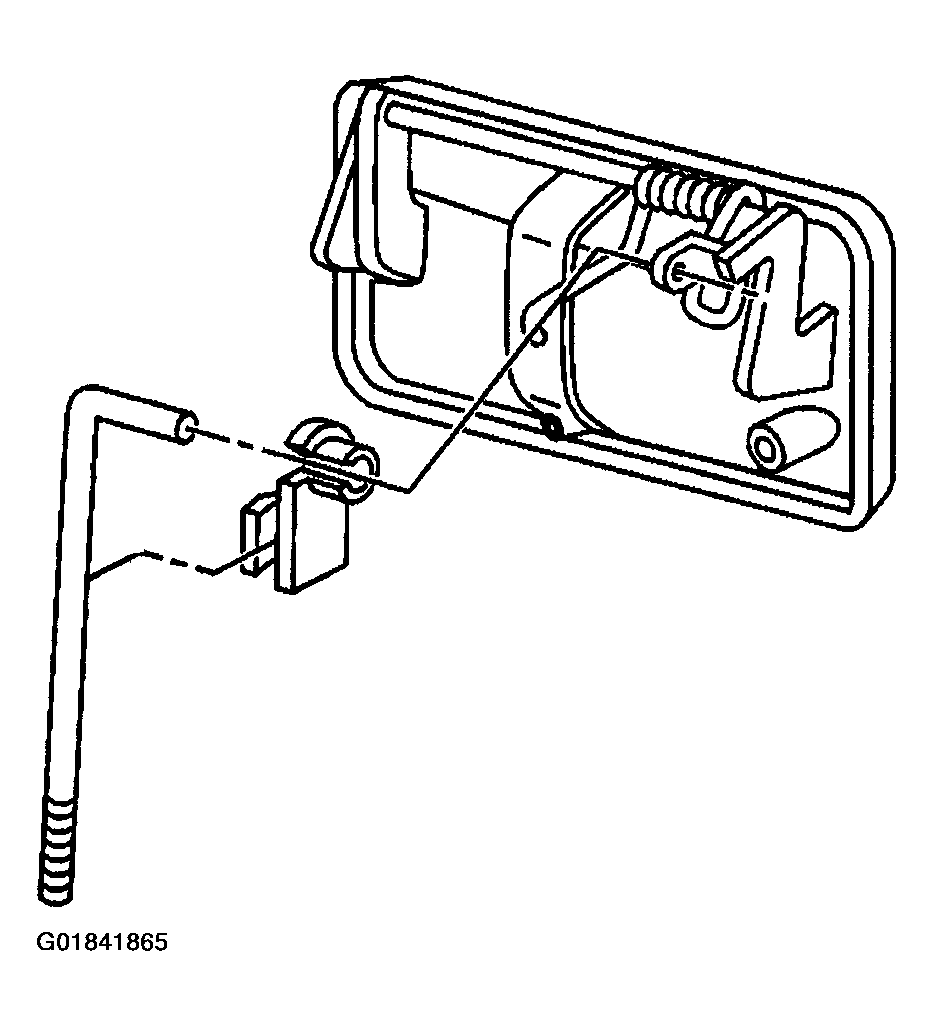

    Fig 1: Locating End Gate Handle Rod Retainer (Utility)
    G01841865Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the liftgate outside handle to the liftgate.

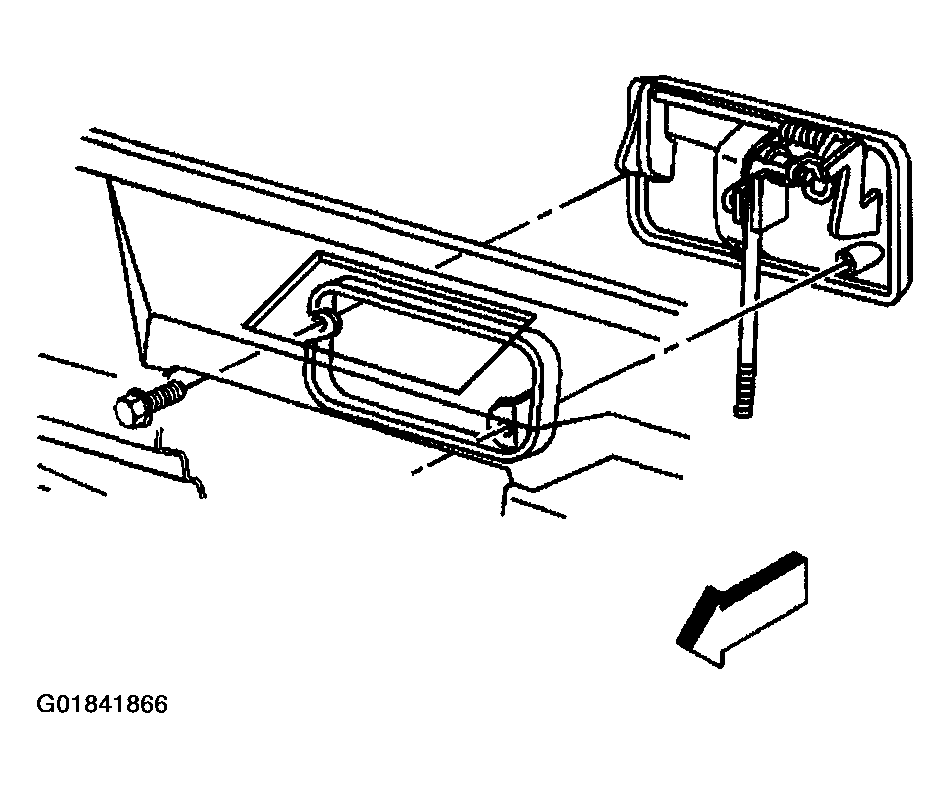

    Fig 2: Locating End Gate Outside Handle Retainer Bolts (Utility)
    G01841866Courtesy of GENERAL MOTORS CORP.
  5. Remove the liftgate outside handle from the liftgate.

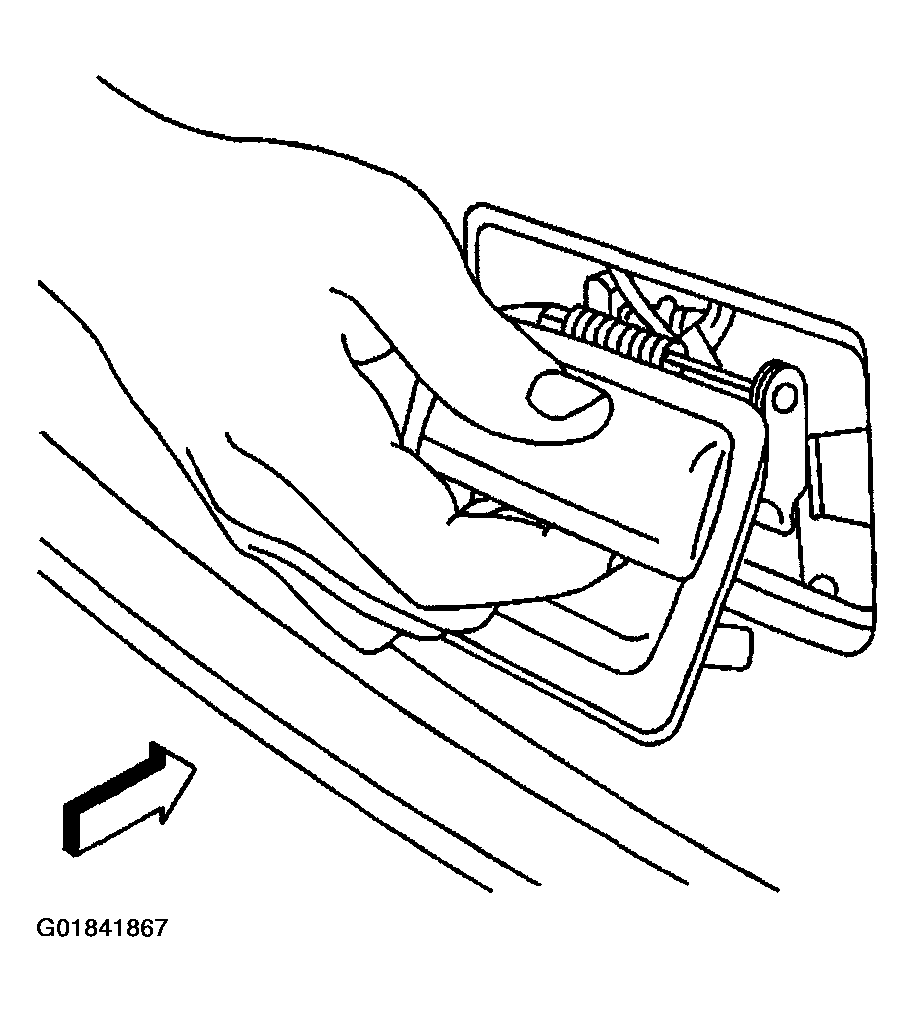

    Fig 3: Locating End Gate Outside Handle (Utility)
    G01841867Courtesy of GENERAL MOTORS CORP.
