Installation Procedure

Install the liftgate outside handle to the liftgate.

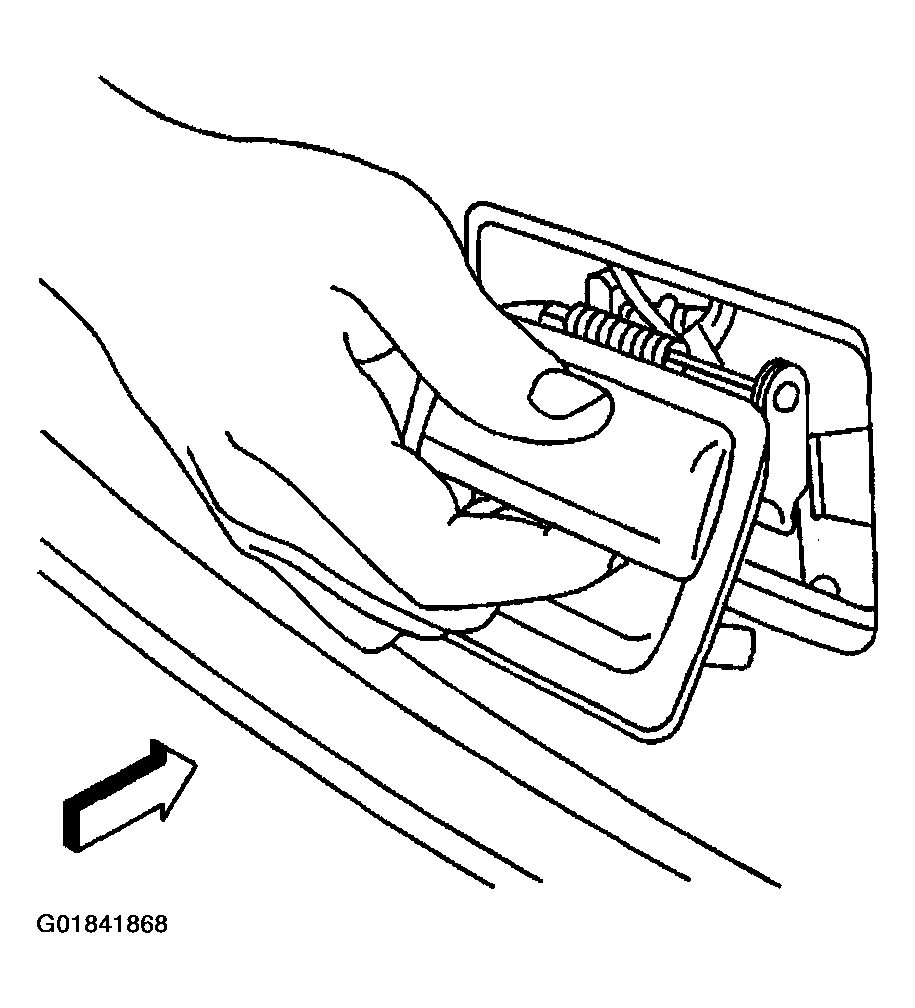

Fig 1: Locating End Gate Outside Handle (Utility)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
Install the bolts that retain the liftgate outside handle to the liftgate.
Tighten

Tighten the bolts to 4 N.m (35 lb in).

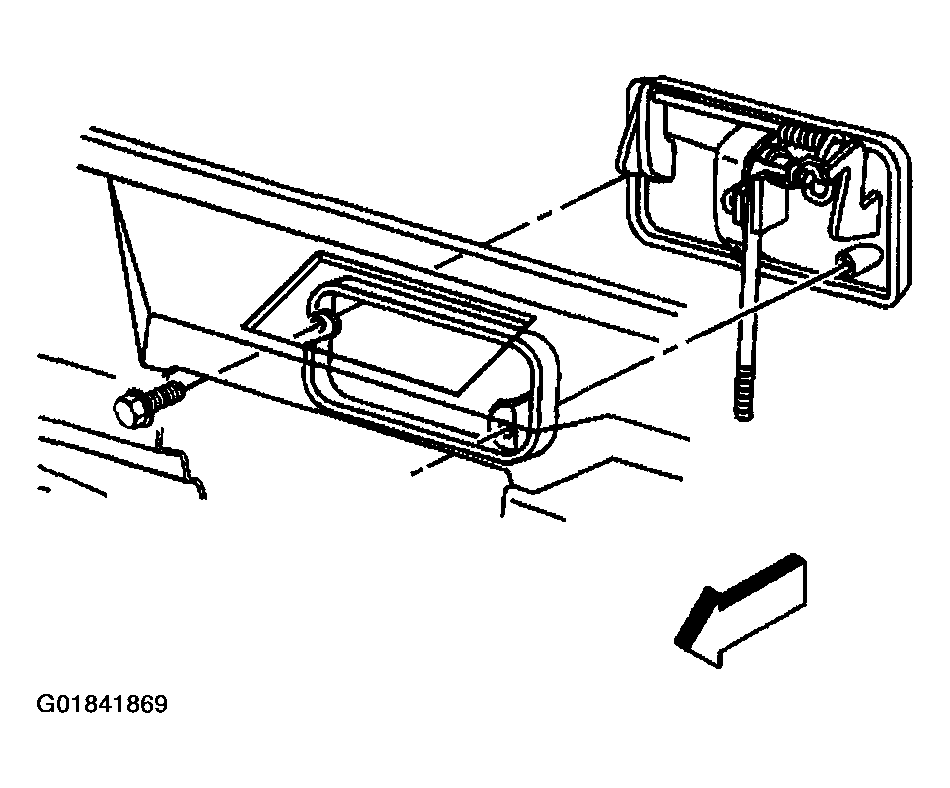

Fig 2: Locating End Gate Outside Handle Retainer Bolts (Utility)
Courtesy of GENERAL MOTORS CORP.
Install the liftgate handle rod to the liftgate handle.

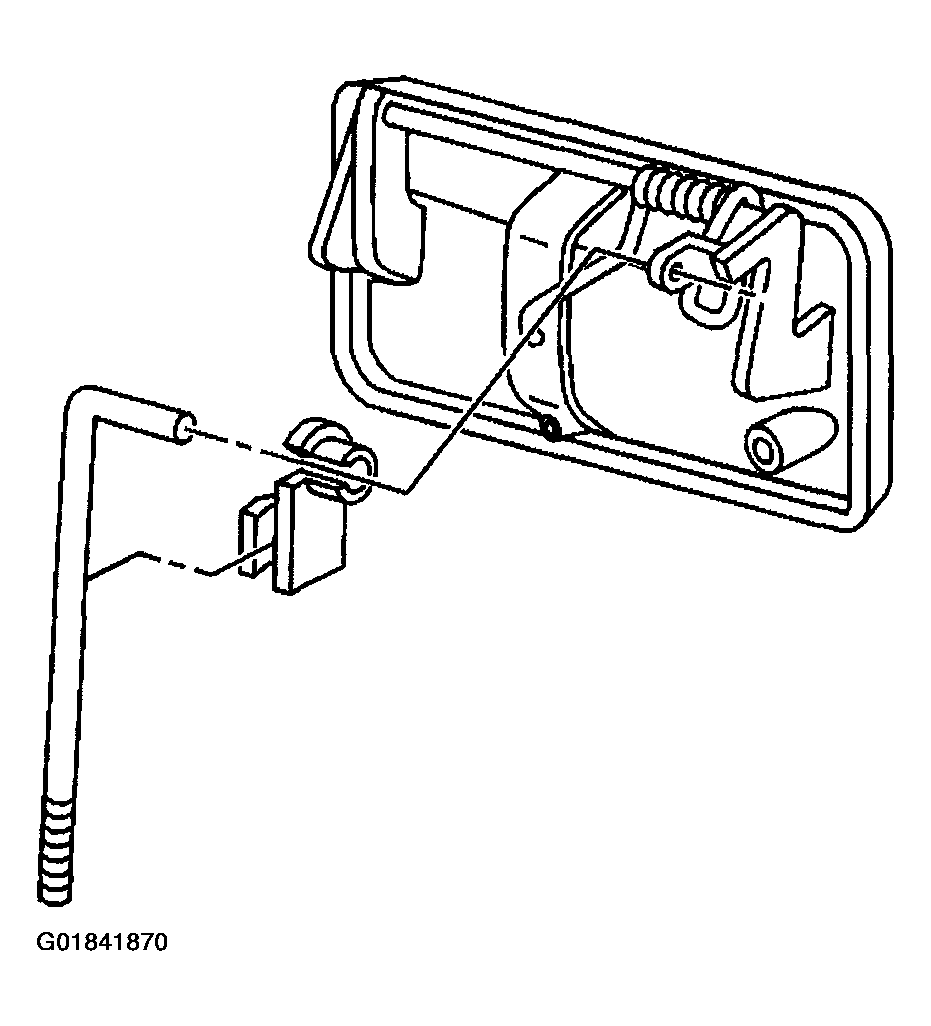

Fig 3: Locating End Gate Handle Rod Retainer (Utility)
Courtesy of GENERAL MOTORS CORP.
Engage the retainer.
Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
