Removal Procedure

  1. Perform the following steps in order to disconnect the right and left pickup box endgate cables from the endgate striker bolts:

    1. 1.1

      Open the endgate.

    2. 1.2

      Safely support the endgate.

    3. 1.3

      Disconnect the slotted hole at the end of the cable from the endgate striker bolt.

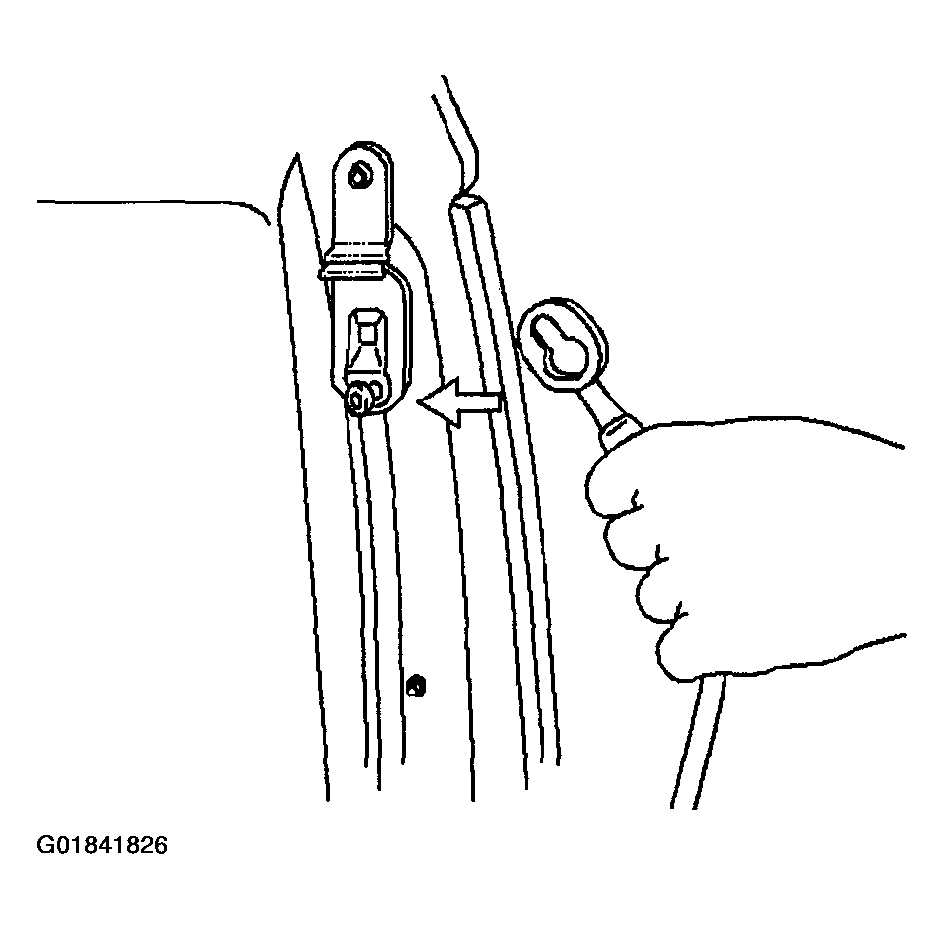

      4. Fig 1: Locating Pickup Box Endgate Cables
      G01841826Courtesy of GENERAL MOTORS CORP.
  2. Remove the endgate from the vehicle:

    1. 2.1

      Raise the endgate to a 45 degree angle.

      Do not pinch the cable between the endgate and the pickup box.

    2. 2.2

      Lift the endgate from the left side hinge.

    3. 2.3

      Lift the endgate from the right side hinge.

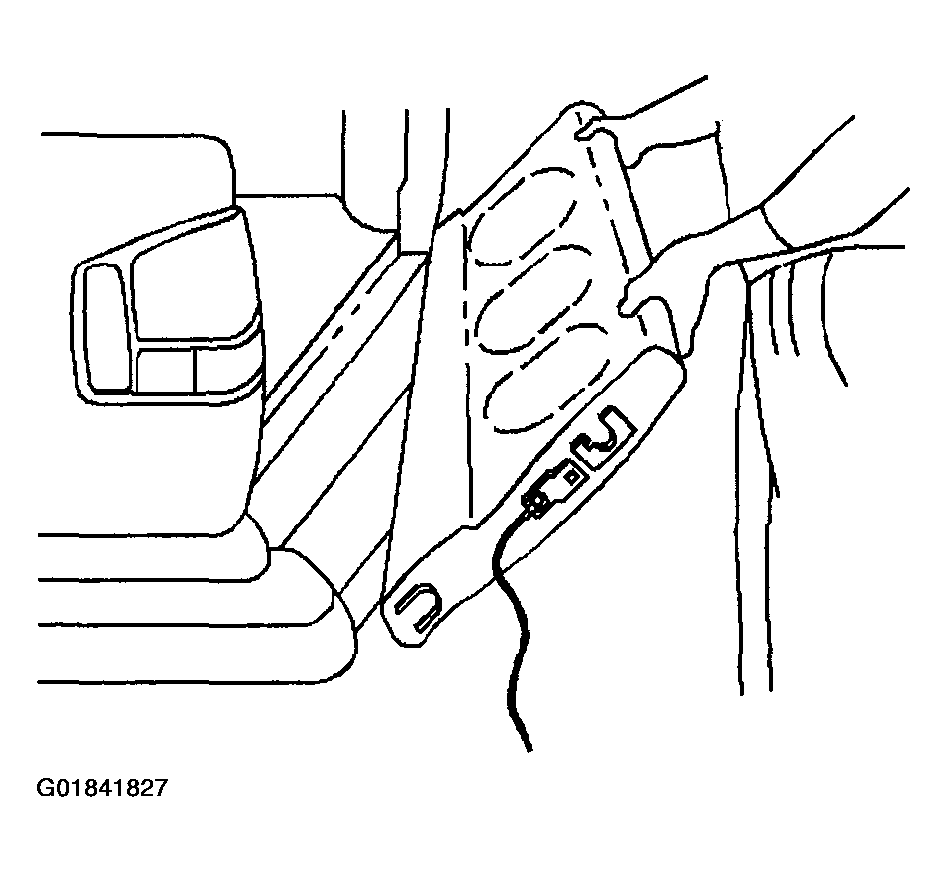

      4. Fig 2: Positioning Pickup Box Endgate
      G01841827Courtesy of GENERAL MOTORS CORP.
