Installation Procedure

  1. Perform the following steps in order to install the endgate to the vehicle:

    1. 1.1

      Install the endgate to the right side hinge.

    2. 1.2

      Hold the endgate at a 45 degree angle in order to seat the endgate to the left side hinge.

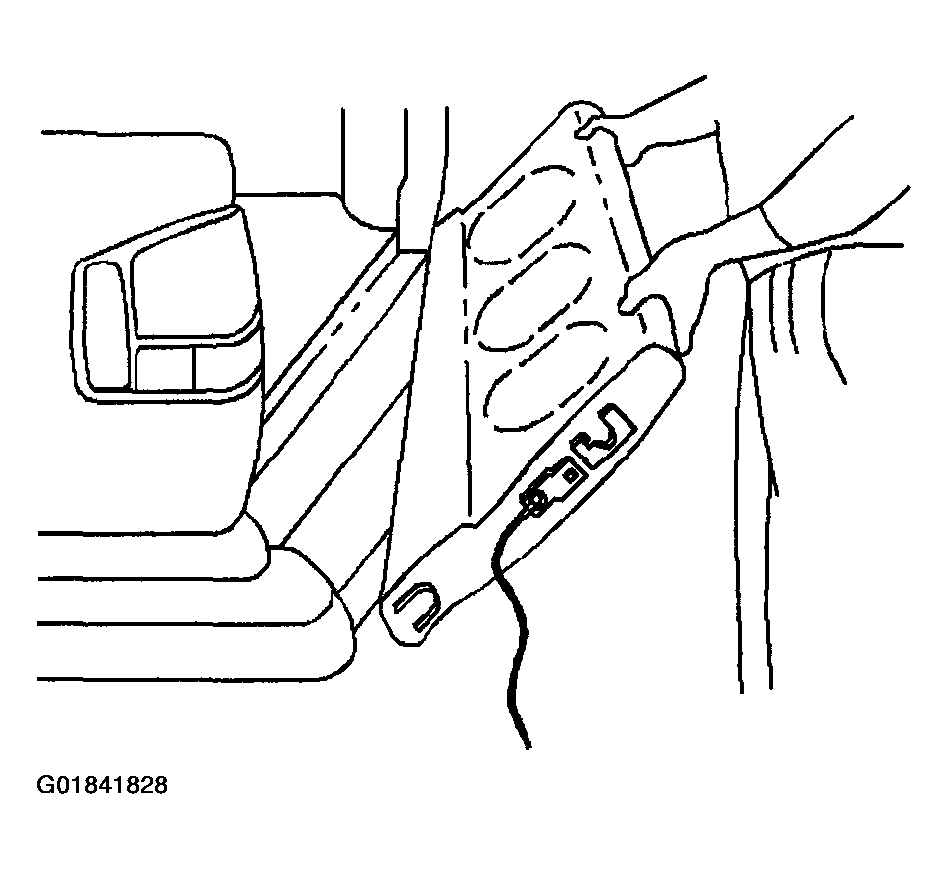

      3. Fig 1: Positioning Pickup Box Endgate
      G01841828Courtesy of GENERAL MOTORS CORP.
  2. Connect the right pickup endgate cable to the endgate striker bolts.
  3. Connect the left pickup endgate cable to the endgate striker bolts.

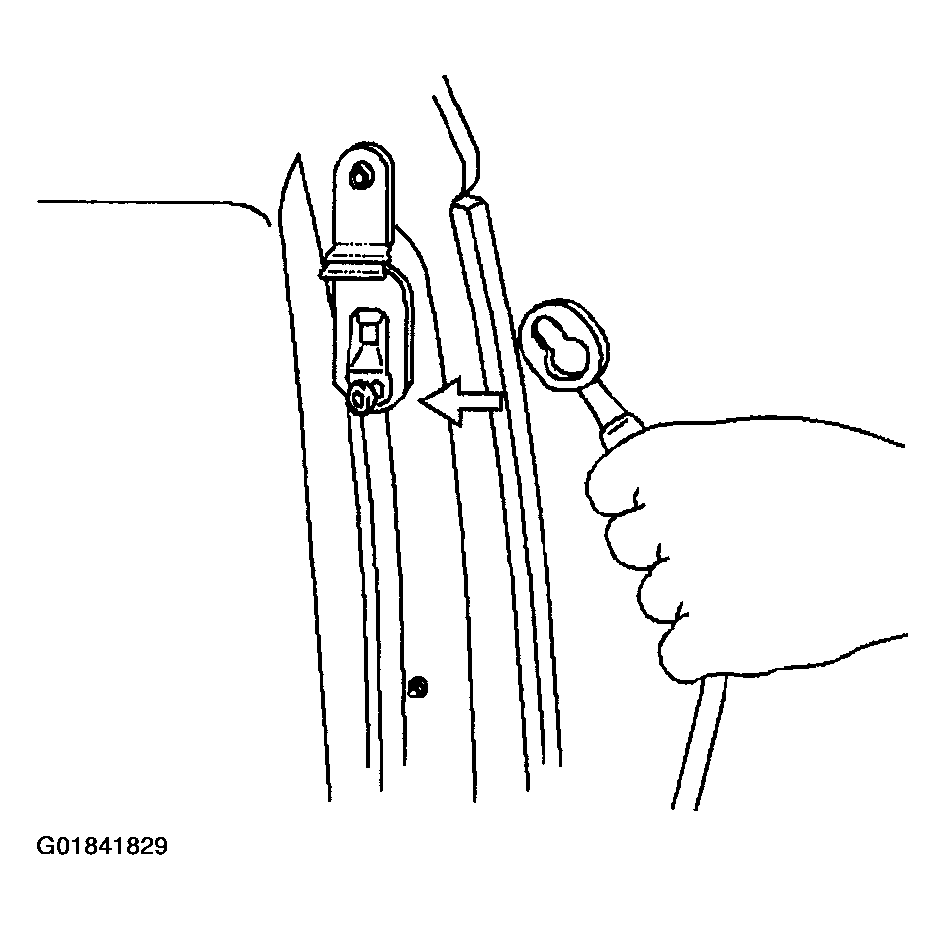

    Fig 2: Locating Pickup Box Endgate Cables
    G01841829Courtesy of GENERAL MOTORS CORP.
