Installation Procedure

  1. Install the inside handle assembly to the endgate cover using 2 rivets.
    Fig 1: Locating Endgate Cover Handle
    G01841816Courtesy of GENERAL MOTORS CORP.
  2. Install the endgate bellcrank rod to the endgate inside handle assembly.
  3. Secure the endgate latch rods to the latch rod clips.
  4. Install the endgate cover to the endgate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  5. Install the screws that retain the endgate cover to the endgate.

    Tighten

    Tighten the screws to 1.2 N.m (11 lb in).

  6. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  7. Install the handle to the inside handle assembly. Refer to HANDLE REPLACEMENT - REAR DOOR INSIDE .

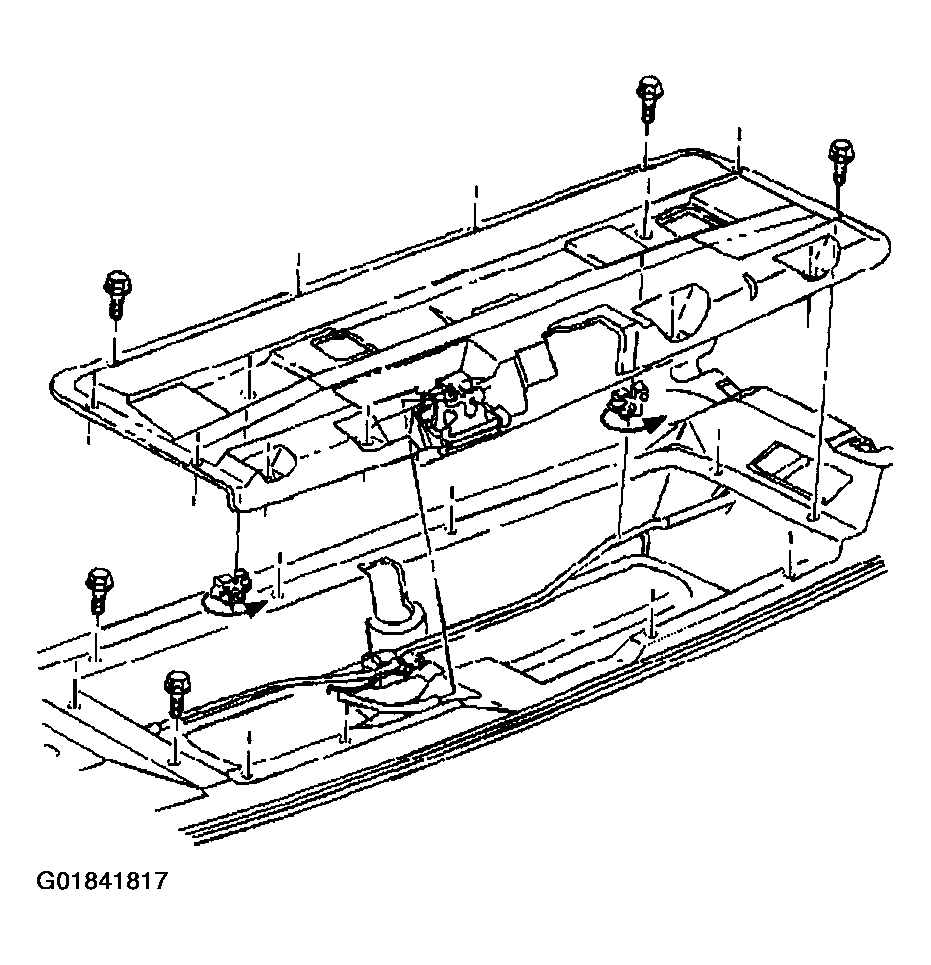

    Fig 2: Locating Endgate Cover Components
    G01841817Courtesy of GENERAL MOTORS CORP.
