Installation Procedure

  1. Install the side bumper.
  2. Install the spacer (if equipped).
  3. Install the upper side bumper bolt.
  4. Rotate the lower side bumper bolt until the threaded hole is properly aligned.
  5. Remove the lower side bumper bolt.
  6. Rotate the side bumper and spacer (if equipped) in order to align the threaded hole in the backing plate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  7. Install the lower side bumper bolt.

    Tighten

    Tighten the bolt to 22 N.m (16 lb ft).

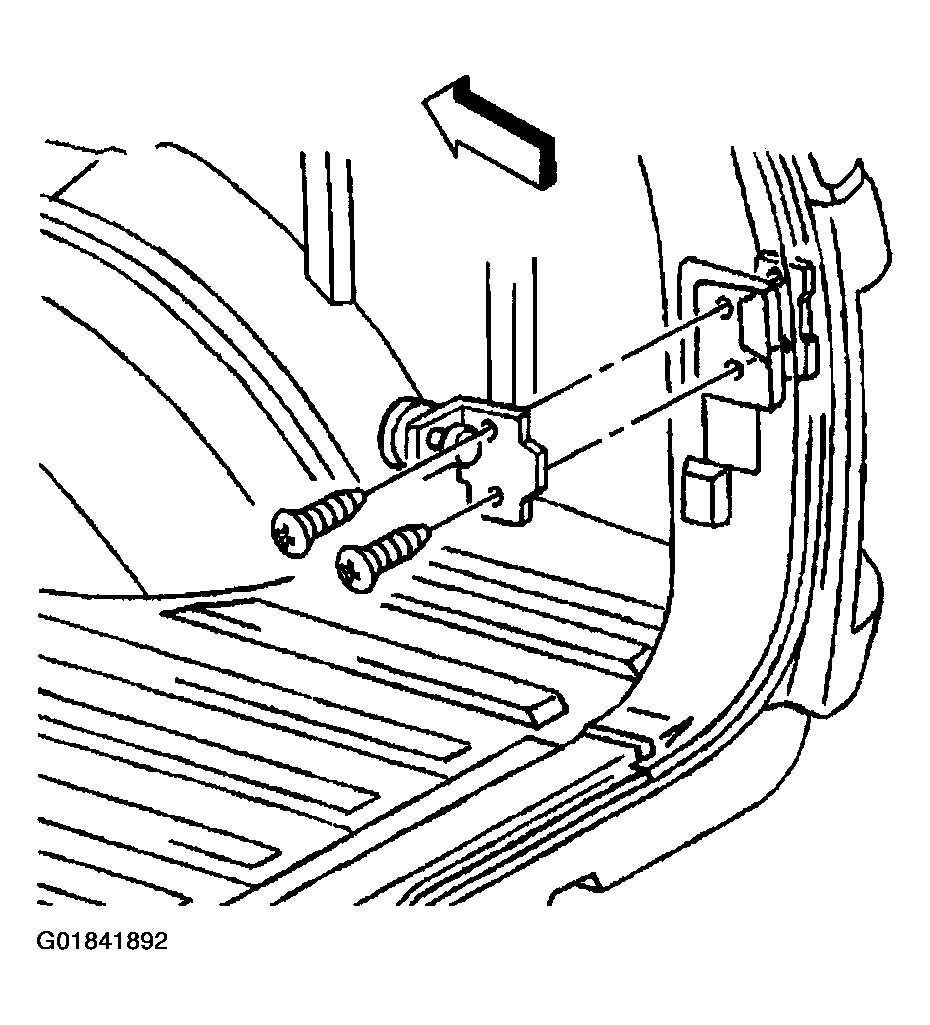

    Fig 1: Locating End Gate Bumper (Utility)
    G01841892Courtesy of GENERAL MOTORS CORP.
