Removal Procedure

  1. Open the endgate.
  2. Perform the following steps in order to remove the pickup box endgate bumper from the vehicle:

    1. 2.1

      Grip the endgate bumper.

    2. 2.2

      Pull out the endgate bumper in order to release the retainers.

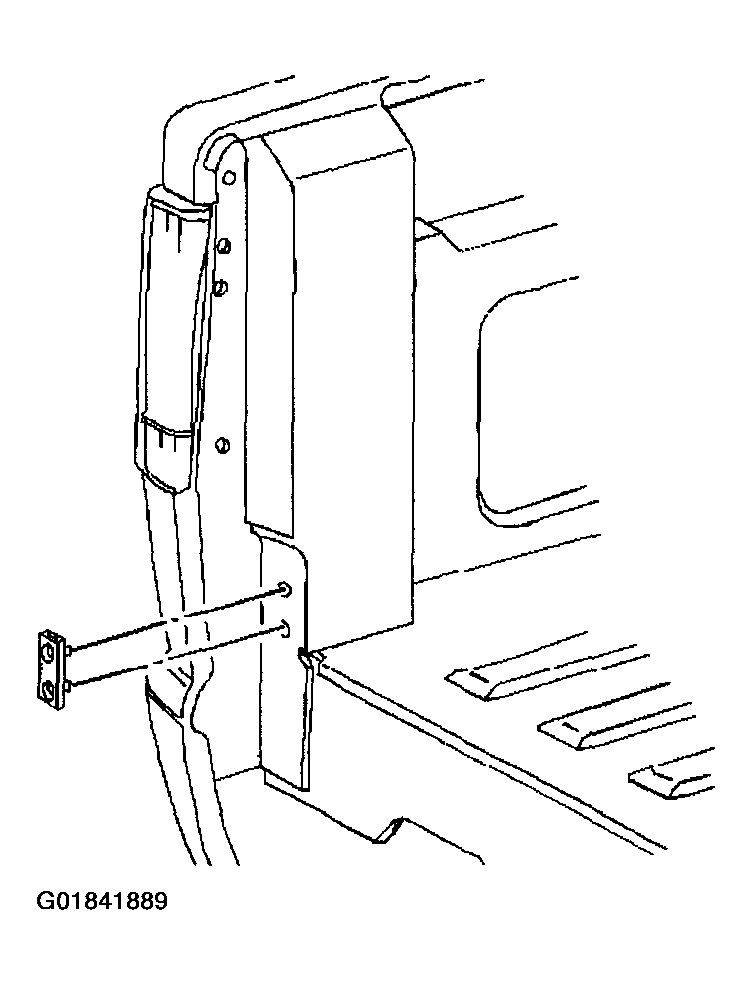

    Fig 1: Locating End Gate Bumper (Pickup)
    G01841889Courtesy of GENERAL MOTORS CORP.
