Installation Procedure

  1. Install the bellcrank to the liftgate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the bolts that retain the bellcrank to the liftgate.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

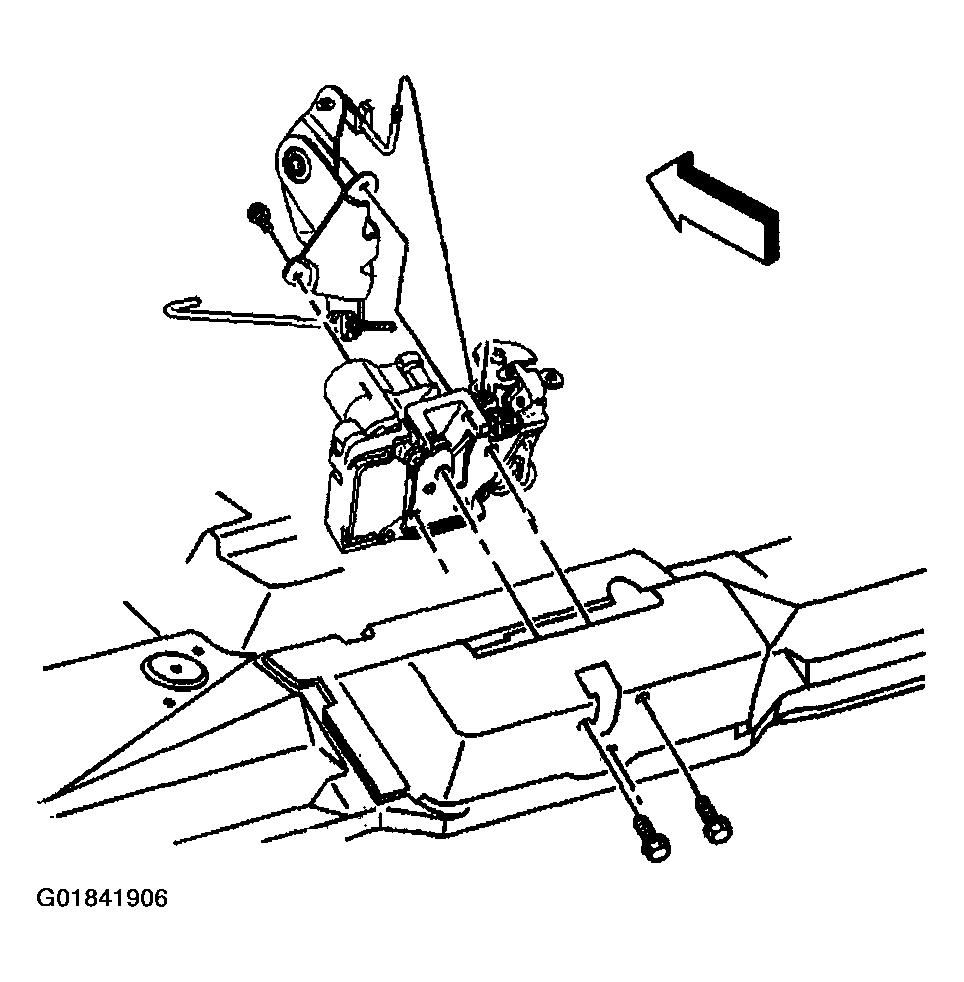

    Fig 1: Locating Liftgate Bellcrank
    G01841906Courtesy of GENERAL MOTORS CORP.
  3. Engage the handle and the latch rods to the bellcrank.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
