Removal Procedure

  1. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  2. Remove the endgate handle rod from the bellcrank.

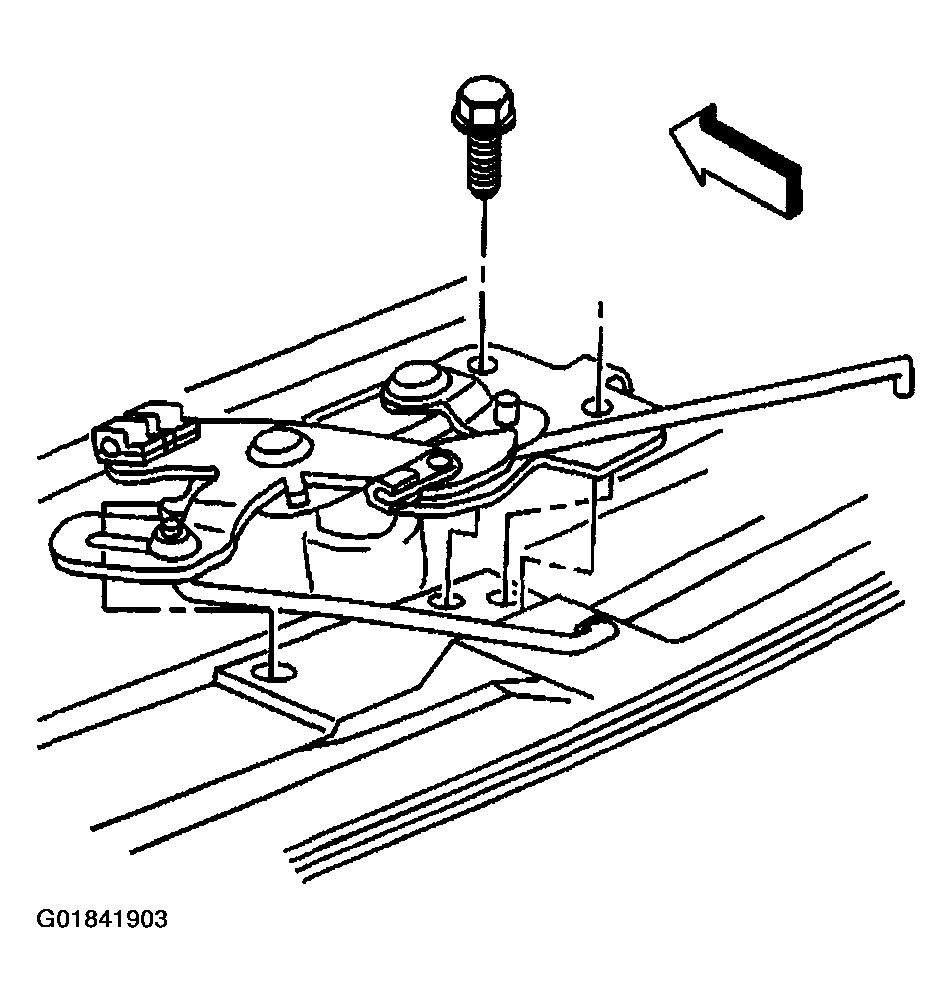

    Fig 1: Locating Endgate Bellcrank
    G01841903Courtesy of GENERAL MOTORS CORP.
  3. Remove the endgate latch rods from the bellcrank.
  4. Remove the bolts that retain the bellcrank to the endgate.
  5. Remove the bellcrank from the endgate.
