Installation Procedure

  1. Install the bellcrank to the endgate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the bolts that retain the bellcrank to the endgate.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

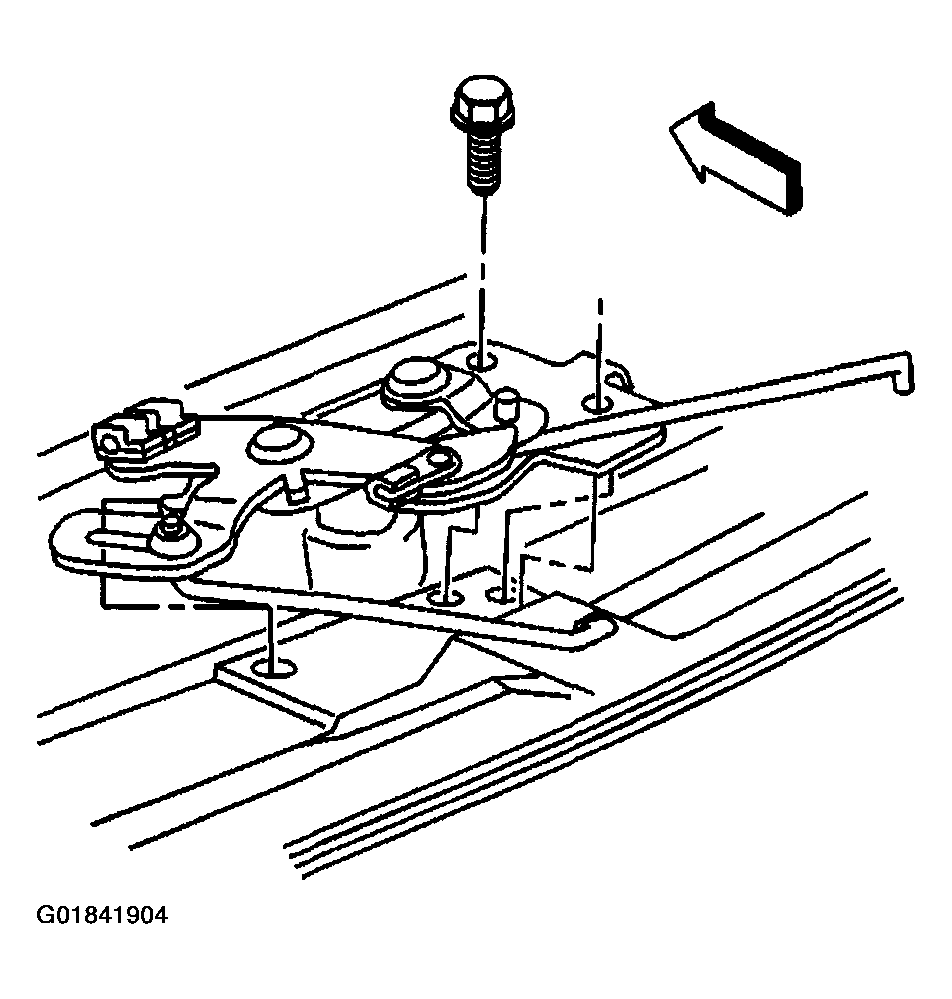

    Fig 1: Locating Endgate Bellcrank
    G01841904Courtesy of GENERAL MOTORS CORP.
  3. Install the endgate latch rods to the bellcrank.
  4. Install the endgate latch handle rod to the bellcrank.
  5. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
