Rear Hatch/Gate Ajar Indicator Inoperative

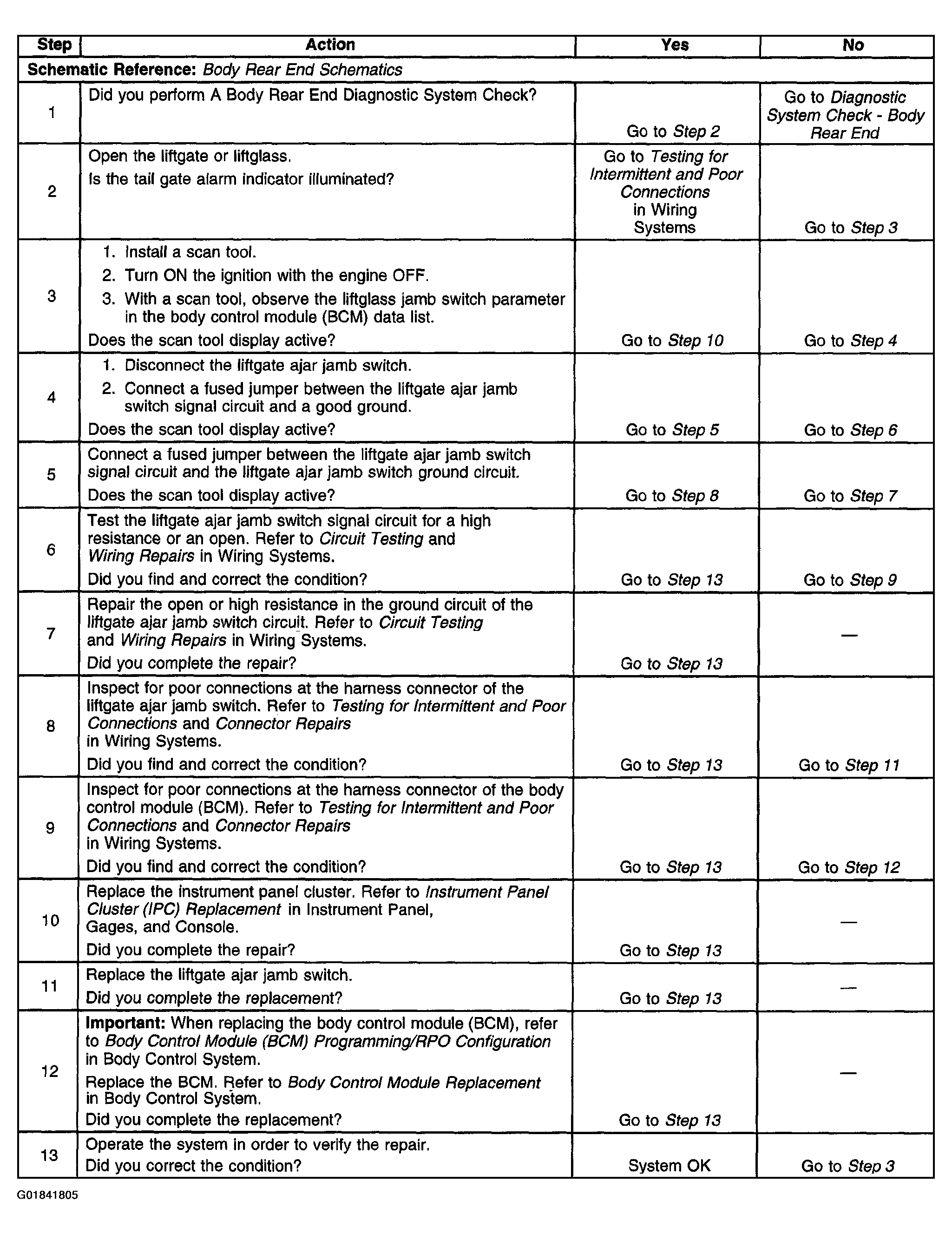

Fig 1: Rear Hatch/Gate Ajar Indicator Inoperative (Steps 1-13)

G01841805

Courtesy of GENERAL MOTORS CORP.
