Rear Hatch/Gate Ajar Indicator Always On

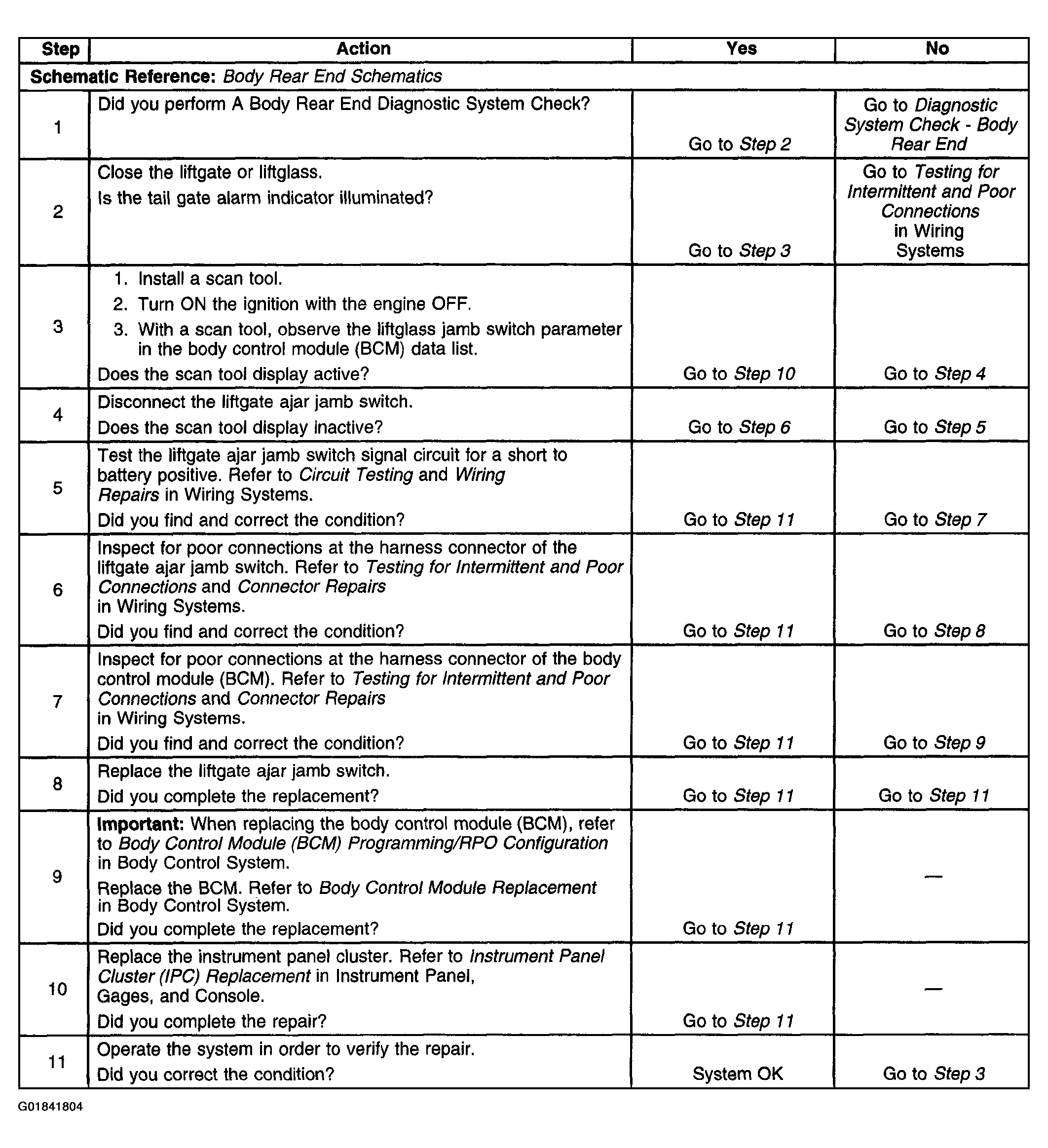

Fig 1: Rear Hatch/Gate Ajar Indicator Always On (Steps 1-11)

G01841804

Courtesy of GENERAL MOTORS CORP.
