Body Rear End Connector End Views

Fig 1: Liftgate Ajar Switch

G01841798

Courtesy of GENERAL MOTORS CORP.

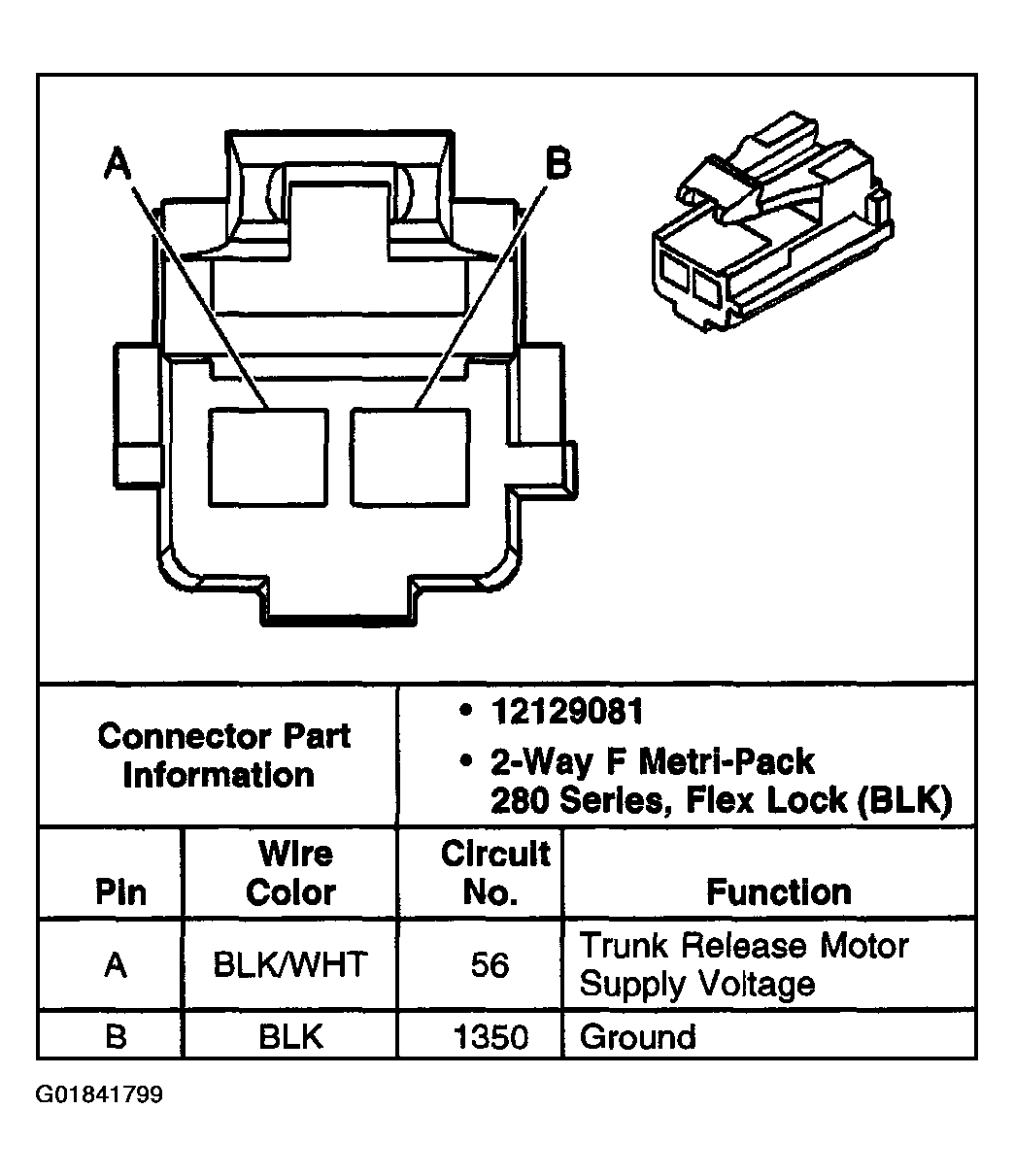

Fig 2: Liftglass Release Actuator

G01841799

Courtesy of GENERAL MOTORS CORP.
