Body Rear End Component Views

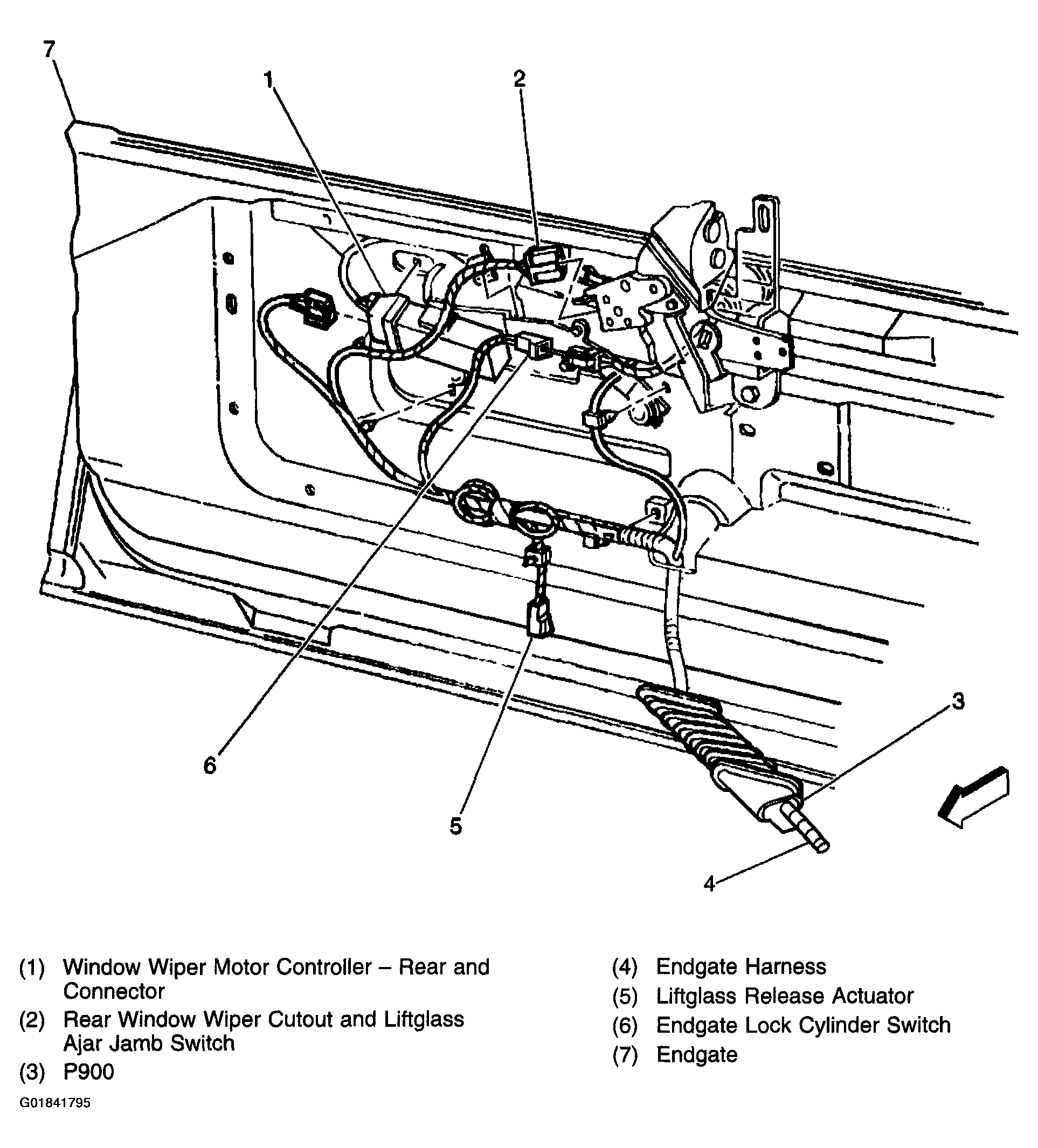

Fig 1: Endgate Harness Routing Views
G01841795Courtesy of GENERAL MOTORS CORP.

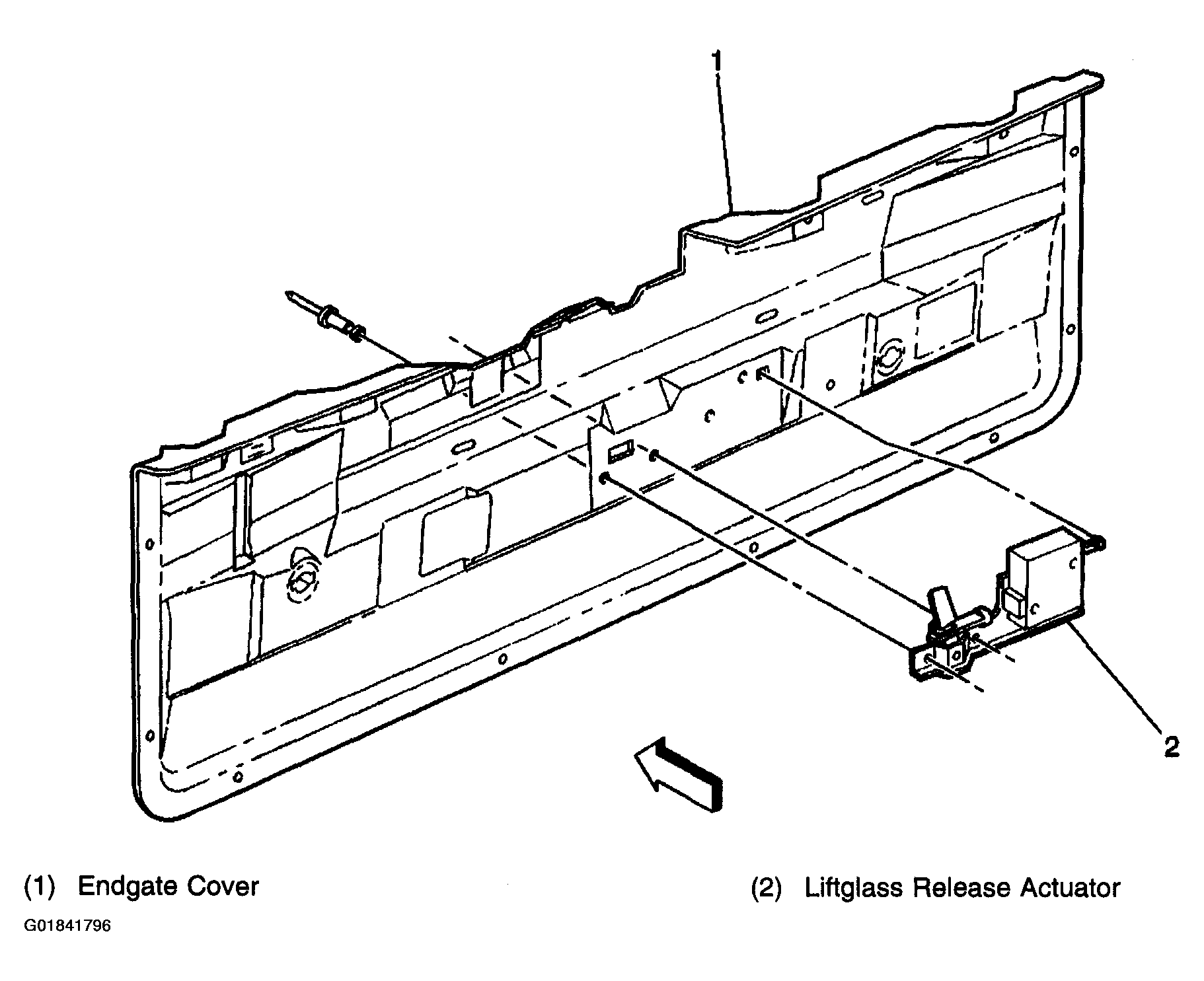

Fig 2: Liftglass Release Actuator
G01841796Courtesy of GENERAL MOTORS CORP.

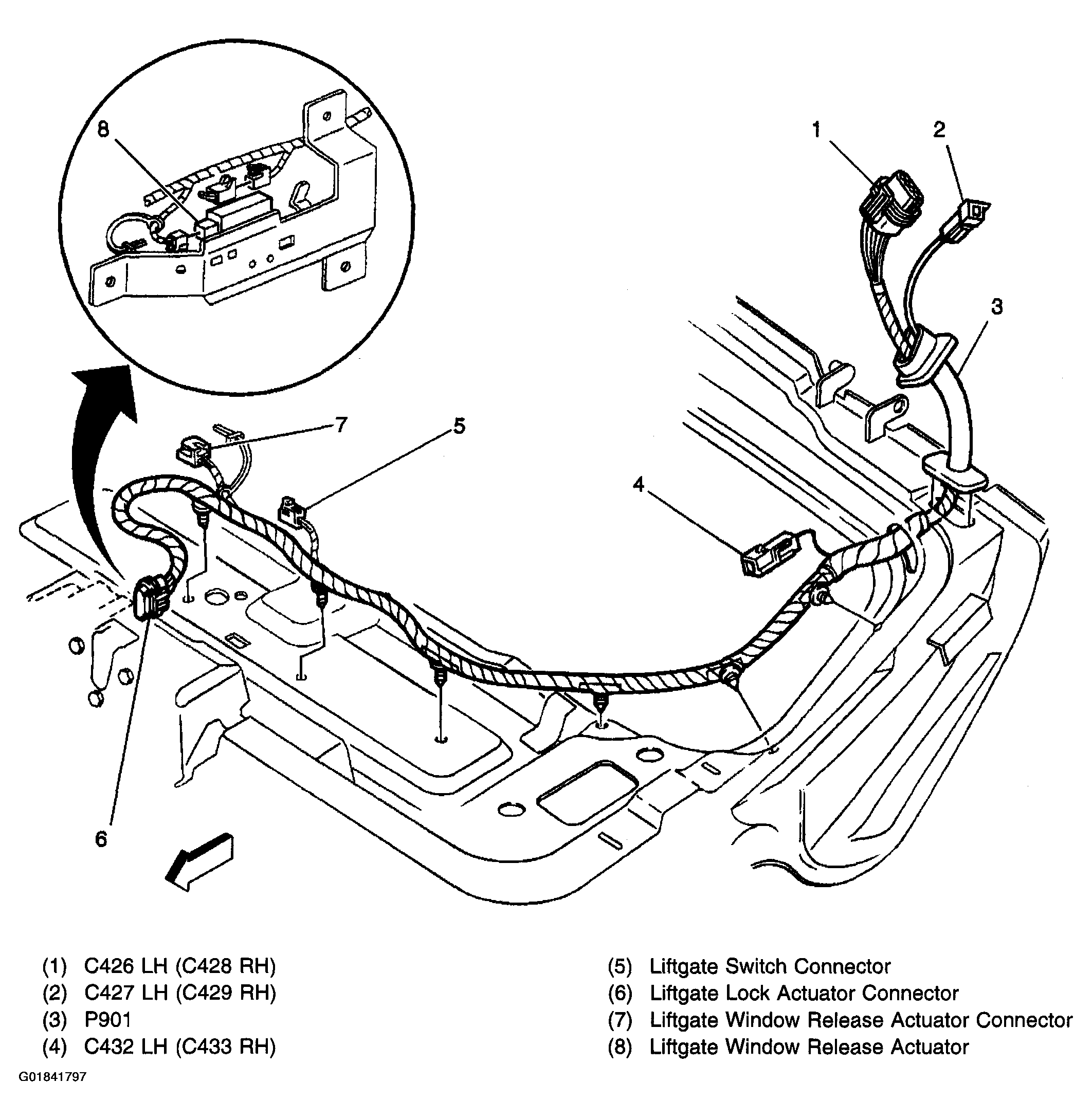

Fig 3: Liftgate LH (Utility)
G01841797Courtesy of GENERAL MOTORS CORP.
