Removal Procedure

  1. Remove the battery. Refer to BATTERY REPLACEMENT in ENGINE ELECTRICAL article.
  2. Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT in BATTERY article.
  3. Remove the PCM from the coolant recovery reservoir. Refer to the appropriate procedure:
  4. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in ENGINE COOLING article.
  5. Remove the bolts that retain the wheel house to the radiator support.

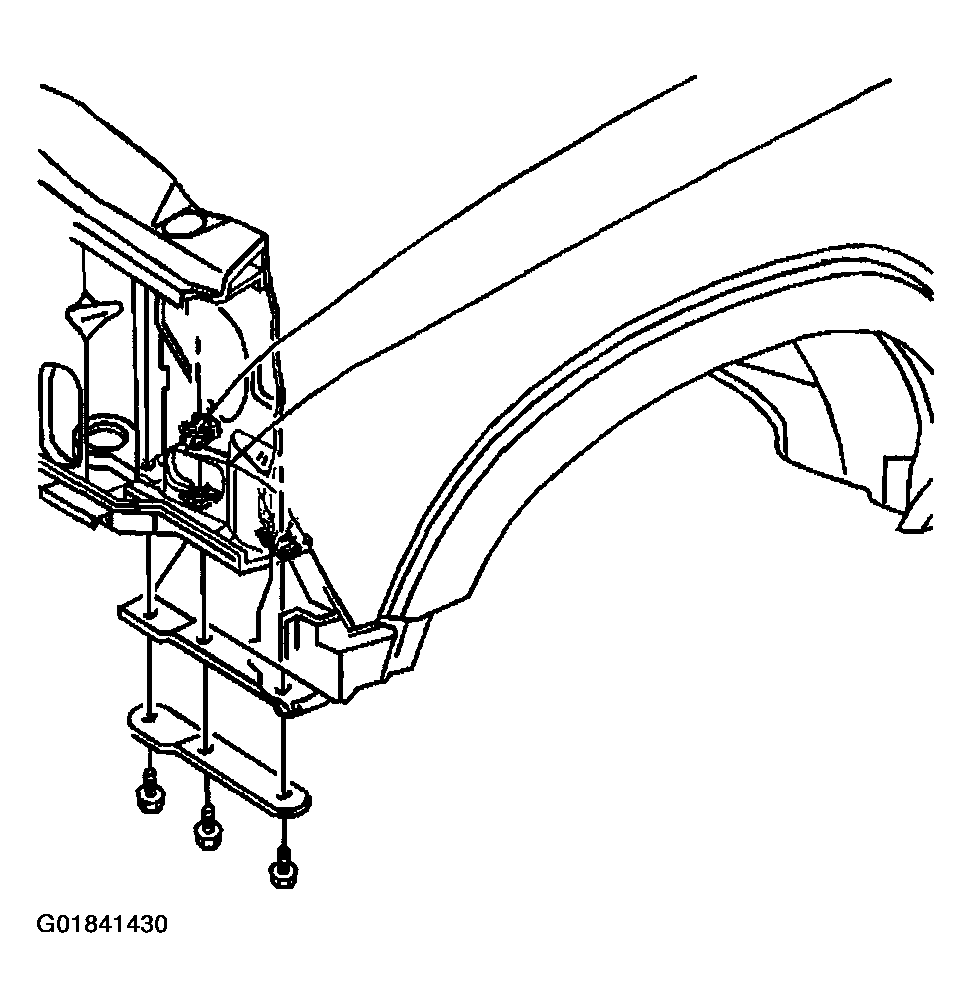

    Fig 1: Locating Left Fender-To-Wheel House Panel Bolts
    G01841430Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts that retain the wheel house to the fender.

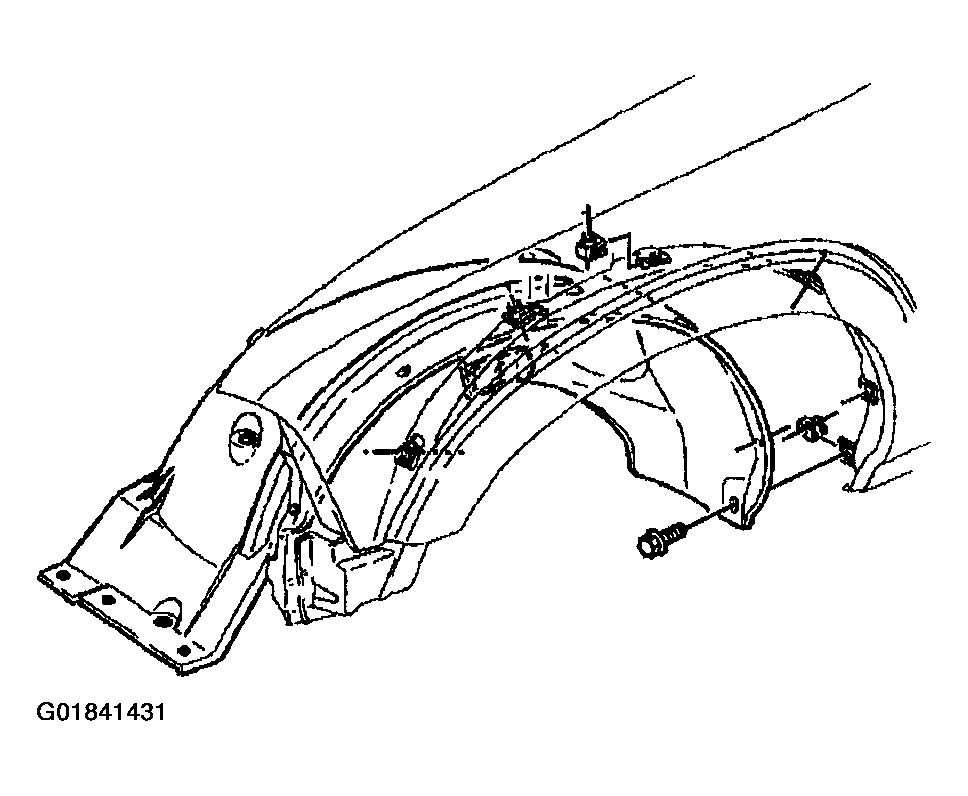

    Fig 2: Locating Wheel House-To-Fender Bolts
    G01841431Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolt that retains the wheel house panel to the cowl.

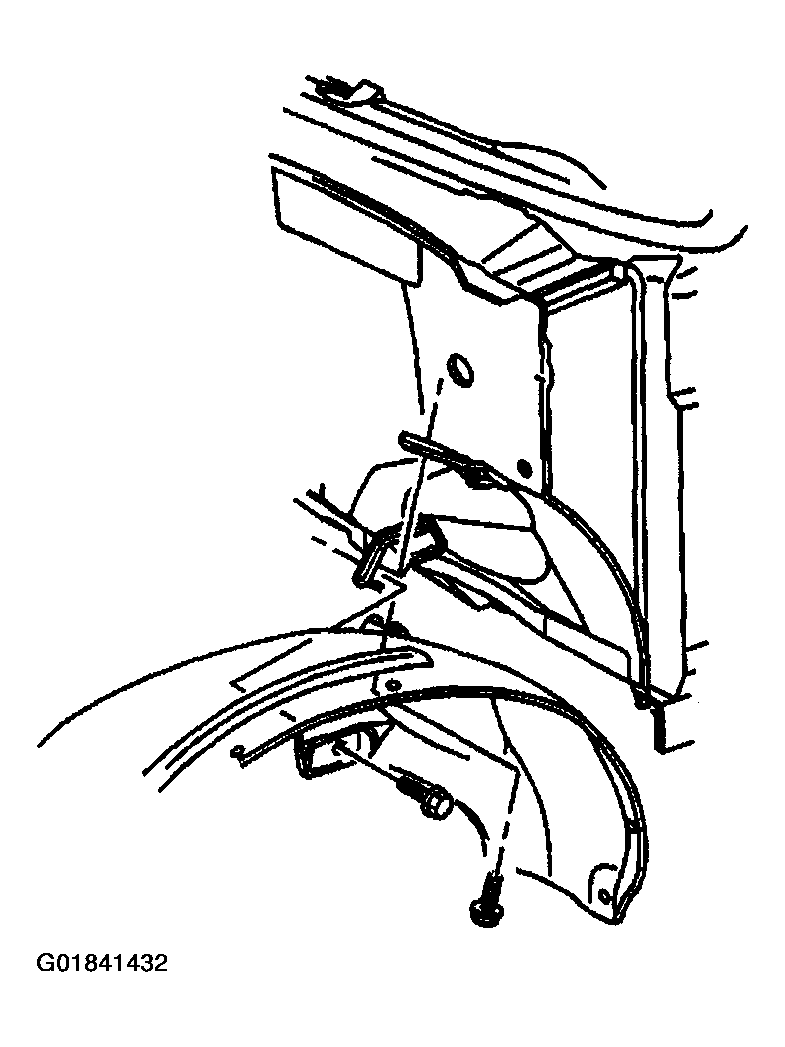

    Fig 3: Locating Wheel House Panel-To-Cowl Bolt
    G01841432Courtesy of GENERAL MOTORS CORP.
  8. Remove the wheel house panel from the fender.
  9. Remove the splash shield from the wheel house panel. Refer to WHEELHOUSE EXTENSION REPLACEMENT .

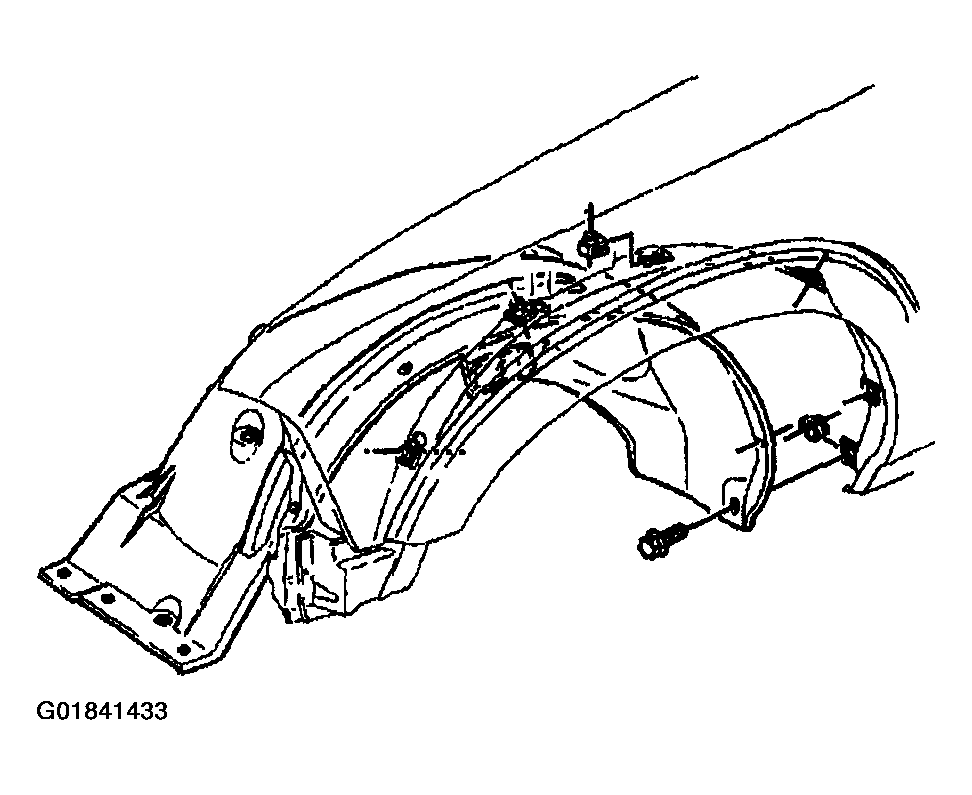

    Fig 4: Locating Wheel House-To-Fender Bolts
    G01841433Courtesy of GENERAL MOTORS CORP.
