Removal Procedure

  1. Remove the wheelhouse splash shield retainers.

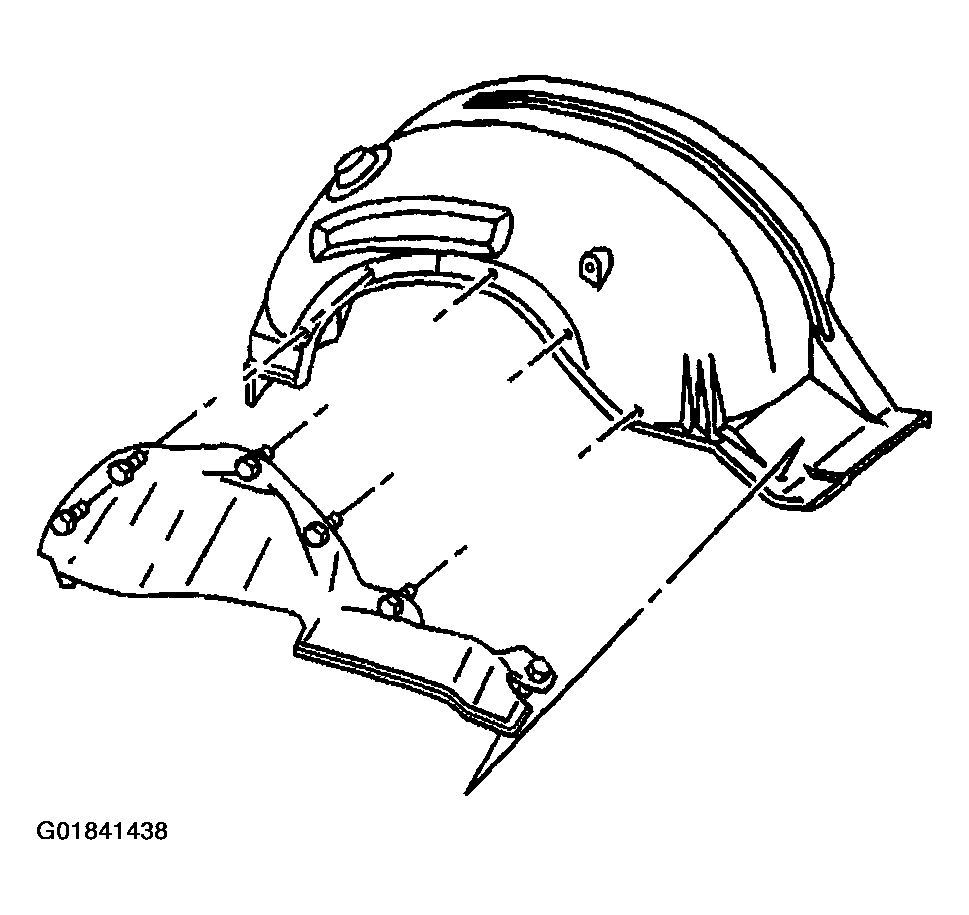

    Fig 1: Locating Wheelhouse Splash Shield Retainers
    G01841438Courtesy of GENERAL MOTORS CORP.
  2. Remove the wheelhouse splash shield.
