Installation Procedure

  1. Install the wheelhouse splash shield.
  2. Install the wheelhouse splash shield retainers.

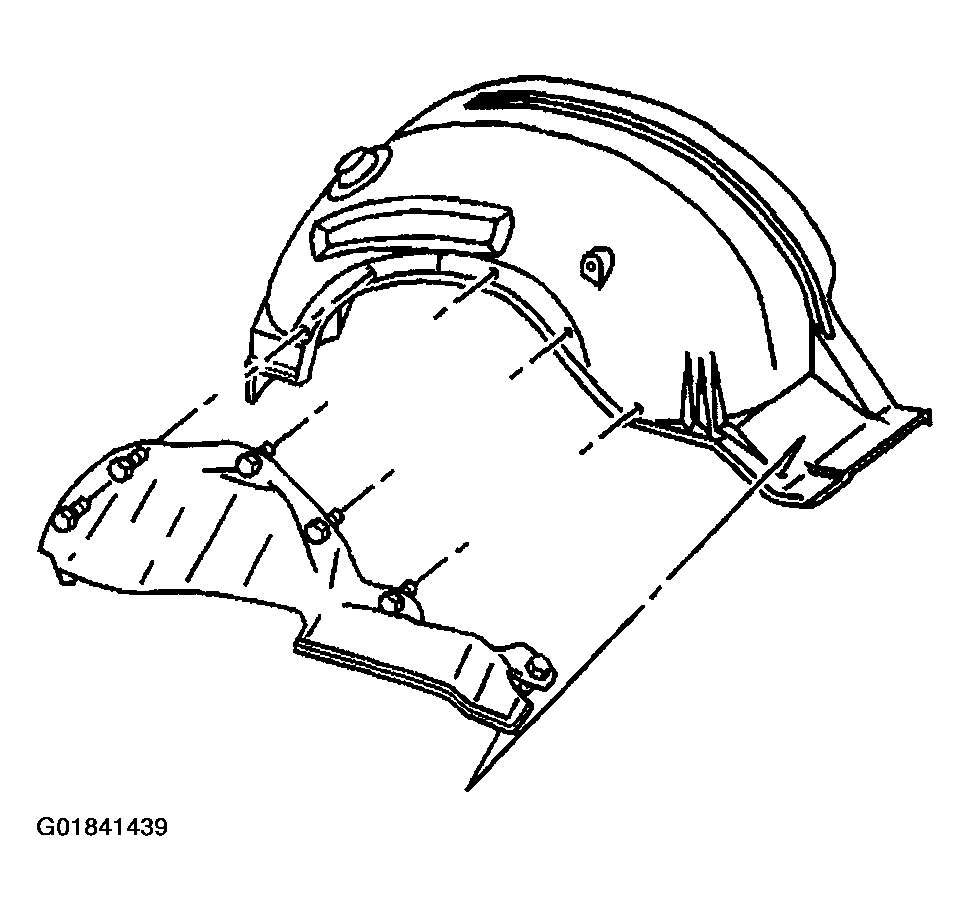

    Fig 1: Locating Wheelhouse Splash Shield Retainers
    G01841439Courtesy of GENERAL MOTORS CORP.
