Installation Procedure

  1. Remove the liner from the adhesive strip.
  2. Position the seal to the cowl plenum.
  3. Press the seal into place.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  4. Install the screws to secure the seal to the cowl.

    Tighten

    Tighten the cowl plenum seal screws to 1.9 N.m (17 lb in).

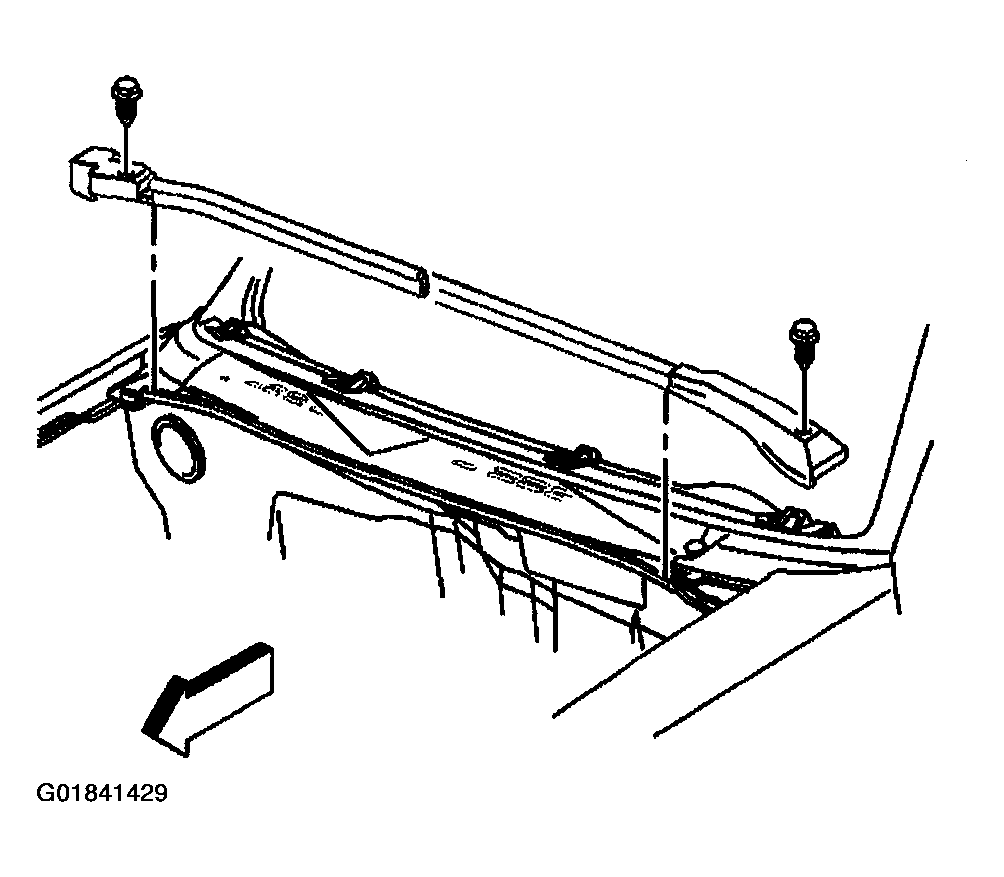

    Fig 1: Locating Rear Hood Seal Assembly Components
    G01841429Courtesy of GENERAL MOTORS CORP.
