Removal Procedure

  1. Use a flat-bladed tool in order to carefully pry the seal assembly away from the flange.
  2. Remove the seal from the hood.

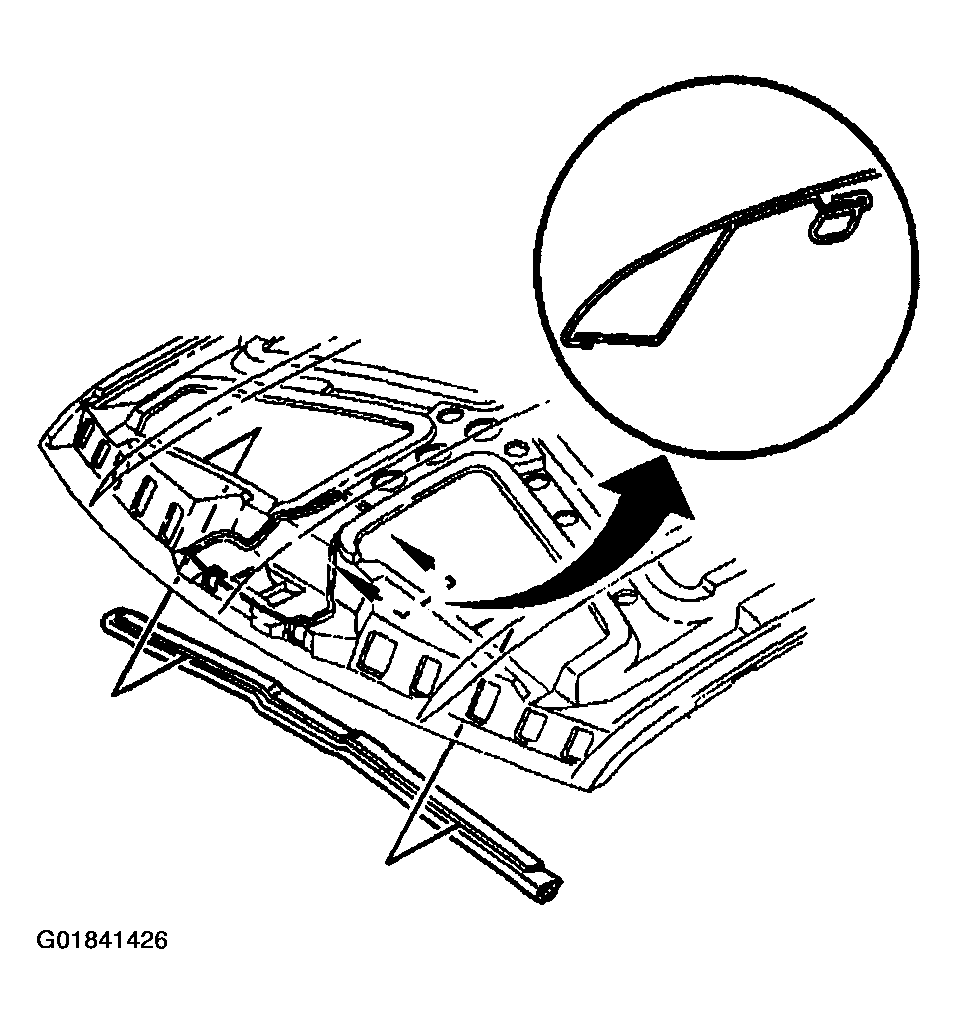

    Fig 1: Locating Front Hood Seal Assembly
    G01841426Courtesy of GENERAL MOTORS CORP.
