Removal Procedure

  1. Remove the skid plate from the grille guard assembly.

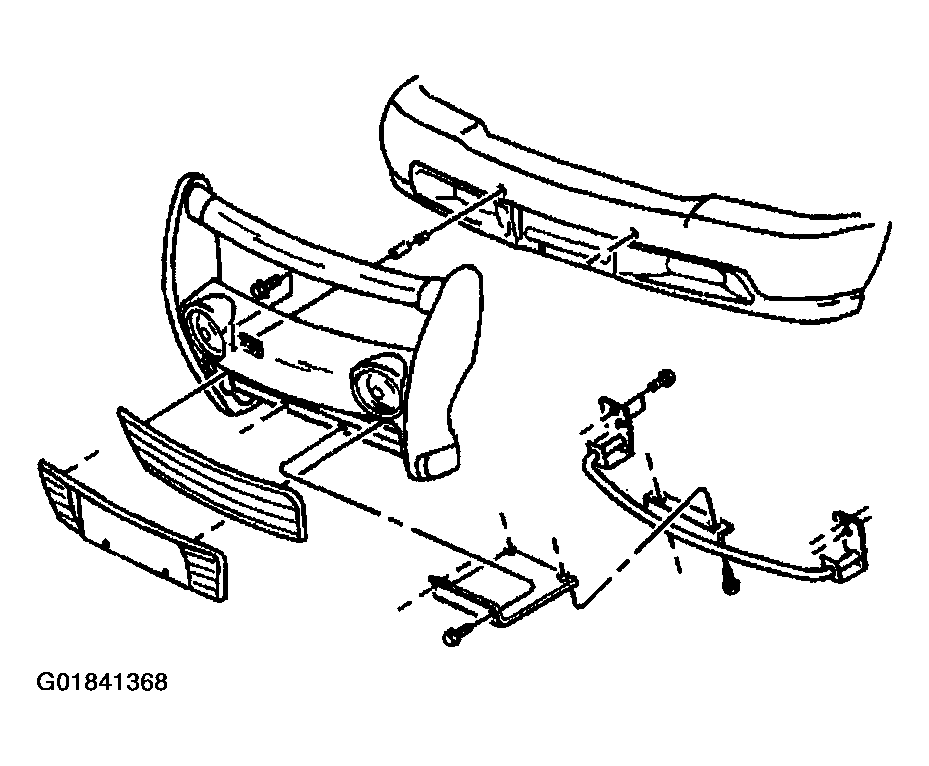

    Fig 1: Identifying Radiator Grille Guard Components (Diamond Edition)
    G01841368Courtesy of GENERAL MOTORS CORP.
  2. Remove 2 bolts and spacers securing the grille guard to the front bumper impact bar.
  3. Remove 2 bolts securing the grille guard assembly to the lower grille guard adjust bracket.
  4. Disconnect the electrical connectors from the fog lamp assemblies.
  5. Remove the grille guard assembly.
  6. Remove each fog lamp assembly by removing 2 bolts.
  7. Remove 2 bolts securing the lower grille guard adjust bracket to the lower grille guard bracket.
  8. Remove 4 bolts securing the lower grille guard to the left and right front body mounts.
  9. Remove the lower grille guard bracket.
