Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in CAUTIONS & NOTICES article.

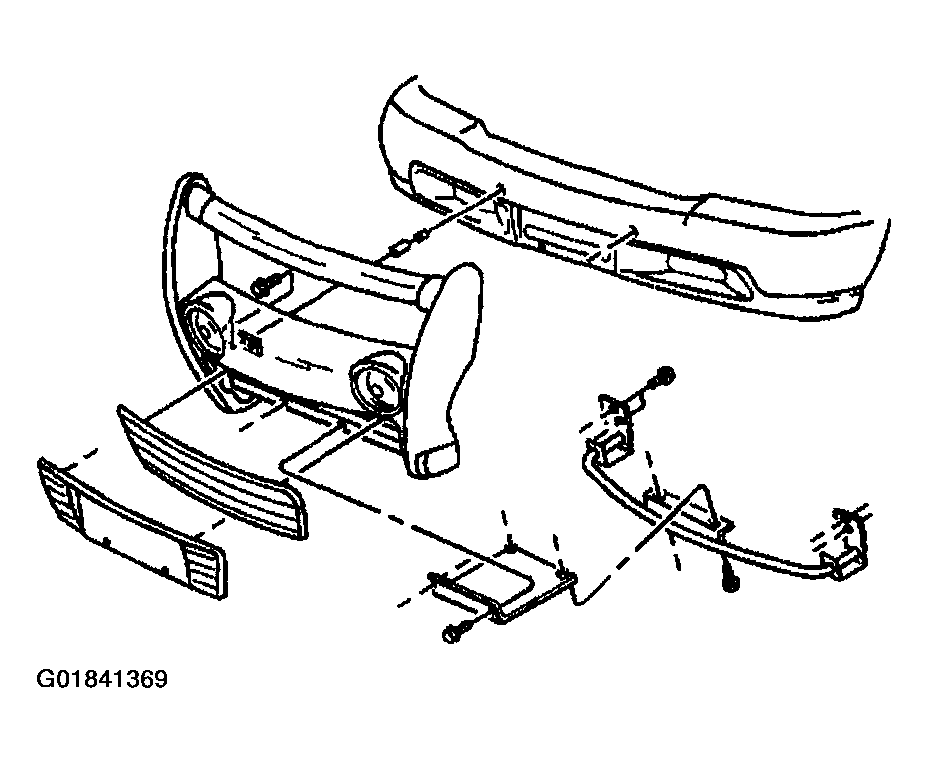

- Install the lower grille guard to the left and right front body mounts with 4 bolts.
Tighten
Tighten the lower grille guard bolts to 45 N.m (33 lb ft).
- Install the lower grille guard adjust bracket to the lower grille guard bracket with 2 bolts.
Tighten
Tighten the adjust bracket bolts to 45 N.m (33 lb ft).
- Install each for lamp assembly to the grille guard with 2 bolts.
Tighten
Tighten the fog lamp bolts to 9 N.m (7 lb ft).
- Connect the electrical connectors to the fog lamp assemblies.
- Install the grille guard assembly to the lower grille guard adjust bracket with 2 bolts.
Tighten
Tighten the grille guard bolts to 45 N.m (33 lb ft).
- Install the grille guard to the front bumper impact bar with 2 bolts and spacers.
Tighten
Tighten the grille guard bolts to 45 N.m (33 lb ft).
- Install the skid plate to the grille guard assembly.
