Removal Procedure

  1. Open and support the hood.
  2. Install protective coverings over the fenders.
  3. Remove the right and the left air inlet grille panels. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  4. Remove the wire from the under hood lamp, if equipped.
  5. Remove the windshield washer nozzles. Refer to WASHER NOZZLE REPLACEMENT in WIPER/WASHER SYSTEMS article.
  6. Remove the hood hinge from the attaching bolts and the nuts.

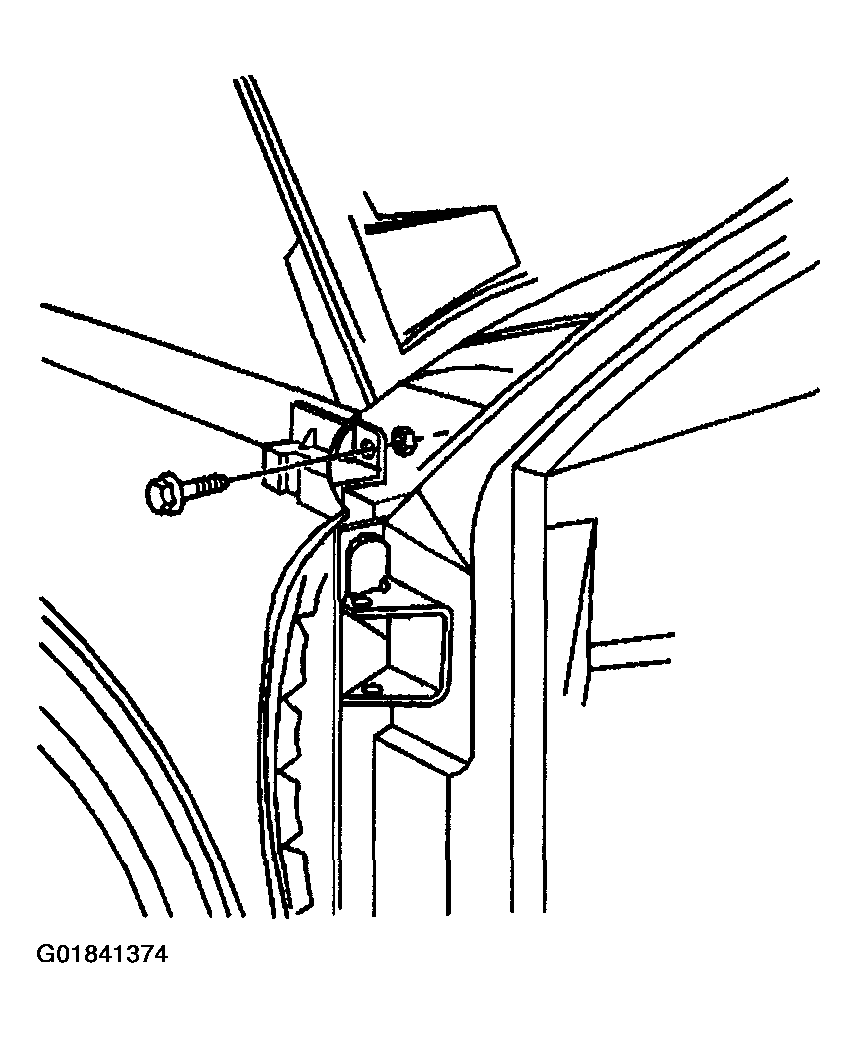

    Fig 1: Locating Hood Hinge Bolts & Nuts
    G01841374Courtesy of GENERAL MOTORS CORP.
  7. With an assistant, remove the hood from the vehicle.
