Removal Procedure

  1. Use a flat-bladed tool in order to push in the hood mounted end of the spring in order to release the retainers.
  2. Remove the spring from the hood.

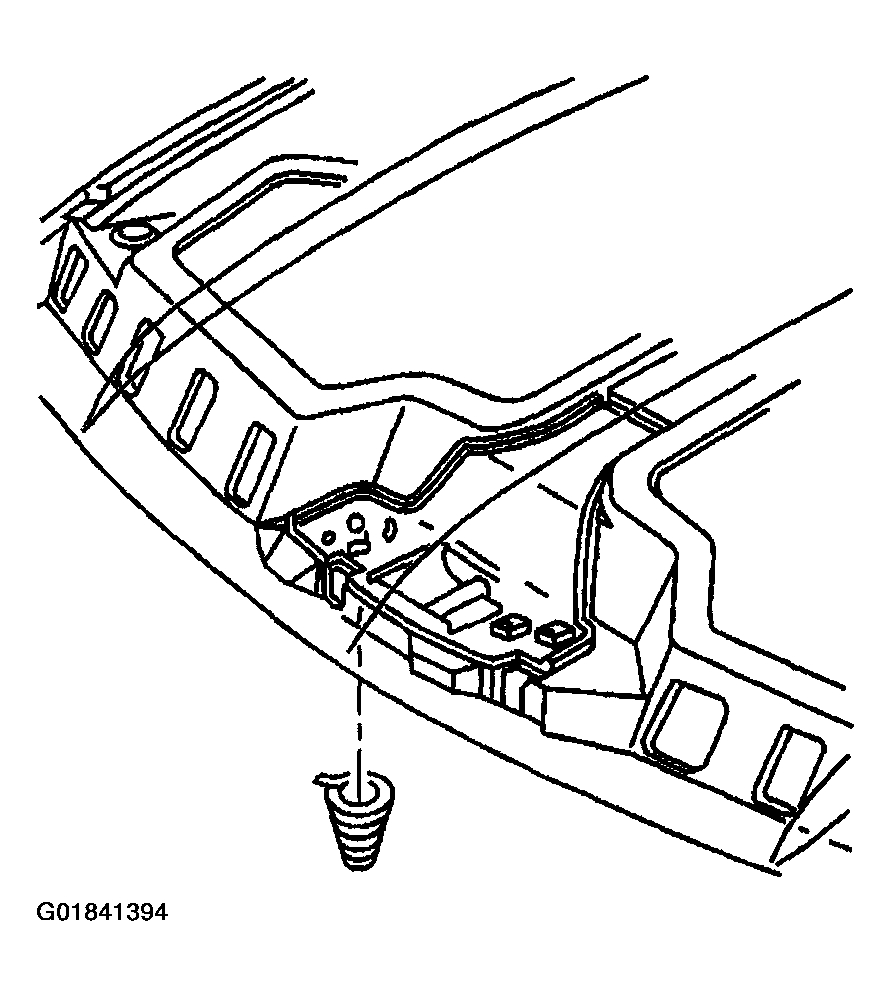

    Fig 1: Locating Hood Pop-Up Spring
    G01841394Courtesy of GENERAL MOTORS CORP.
