Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body Front End >> Repair Instructions >> Hood Latch Replacement - Secondary >> Removal Procedure

Removal Procedure

  1. Raise and support the hood.
  2. Remove the bolts that retain the latch assembly to the hood.
  3. Remove the secondary hood latch assembly from the hood.

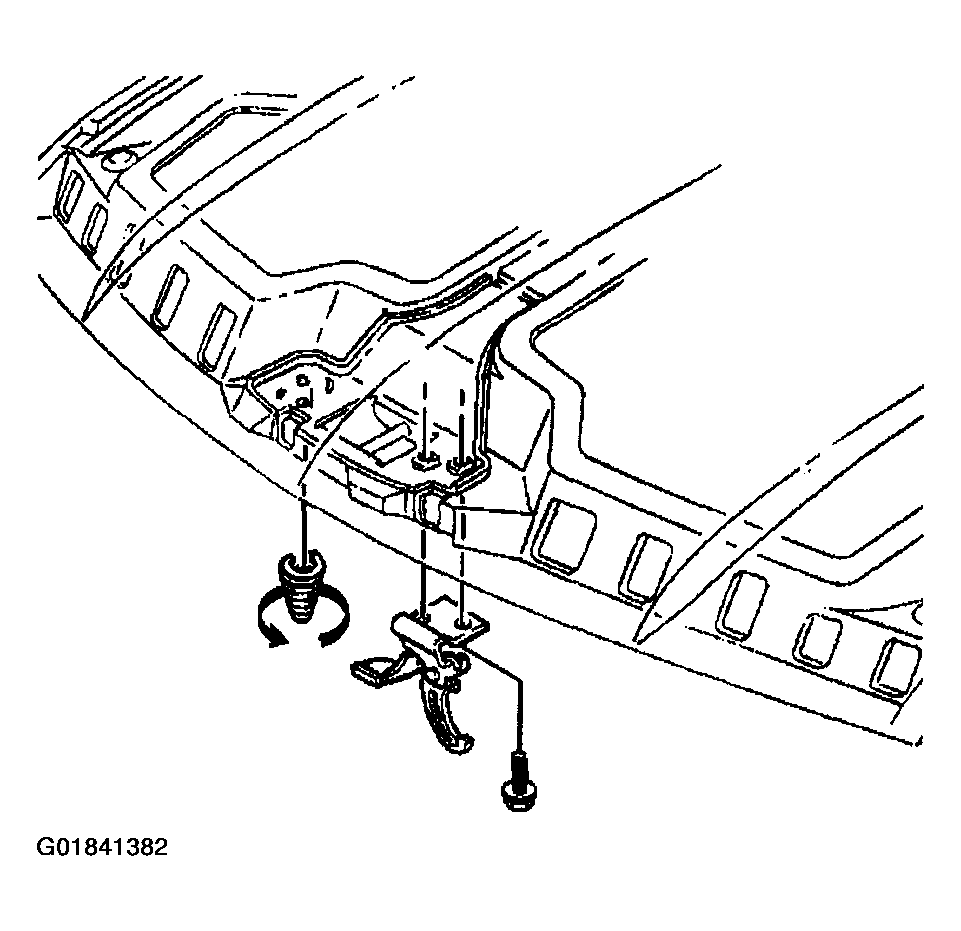

    Fig 1: Identifying Secondary Hood Latch Assemblies
    G01841382Courtesy of GENERAL MOTORS CORP.
