Installation Procedure

  1. Install the secondary hood latch assembly to the hood.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  2. Install the secondary hood latch bolts that retain the latch assembly to the hood.

    Tighten

    Tighten the secondary hood latch mounting bolts to 25 N.m (18 lb ft).

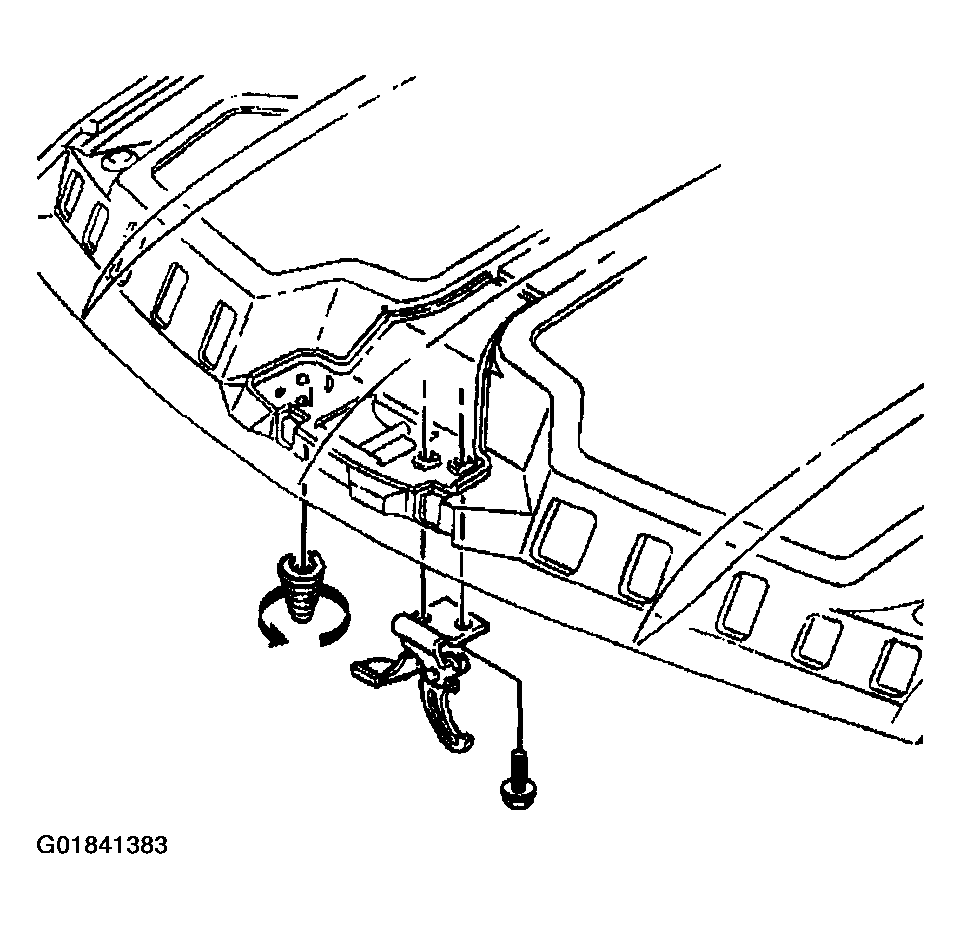

    Fig 1: Identifying Secondary Hood Latch Assemblies
    G01841383Courtesy of GENERAL MOTORS CORP.
