Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body Front End >> Repair Instructions >> Hood Latch Adjustment >> Adjustment Procedure

Adjustment Procedure

  1. Remove the hood latch mounting bracket.
  2. Loosen the nuts that retain the hood latch support to the hood latch mounting bracket.

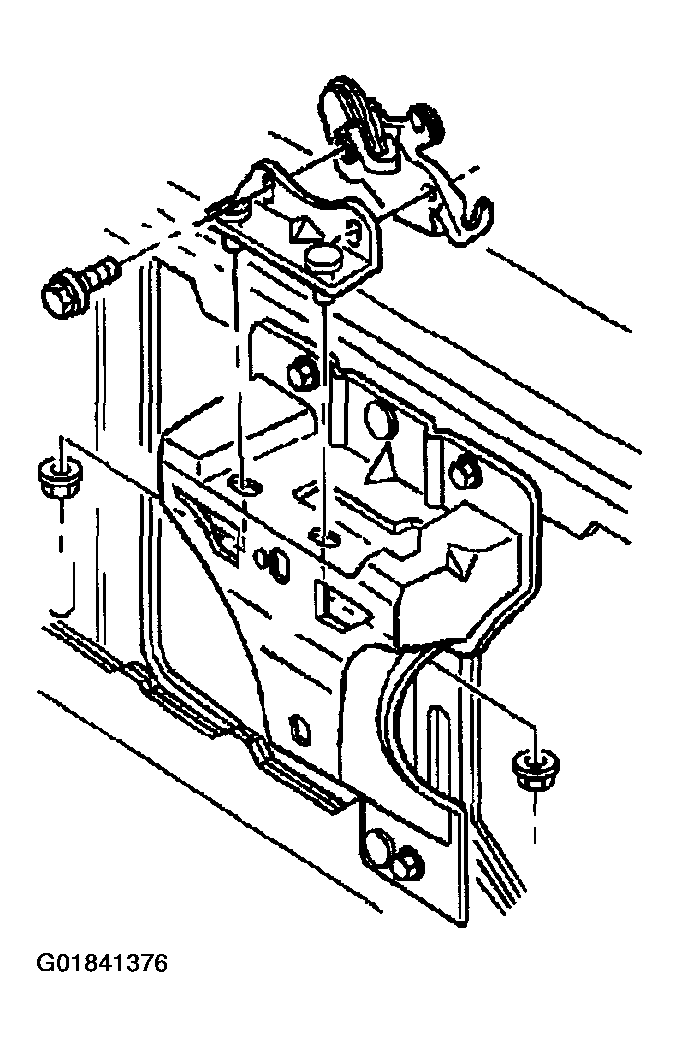

    Fig 1: Locating Hood Latch Support-To-Hood Latch Mounting Bracket Nuts & Bolts
    G01841376Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  3. Move the hood latch from side to side until the striker enters the center of the latch assembly.

    Tighten

    Tighten the primary hood latch support bracket mounting bolts to 25 N.m (18 lb ft).

    Fig 2: Identifying Hood Latch Striker Position
    G01841377Courtesy of GENERAL MOTORS CORP.
