Removal Procedure

  1. Use the J 38778  in order to remove the retainers that retain the insulator to the hood.

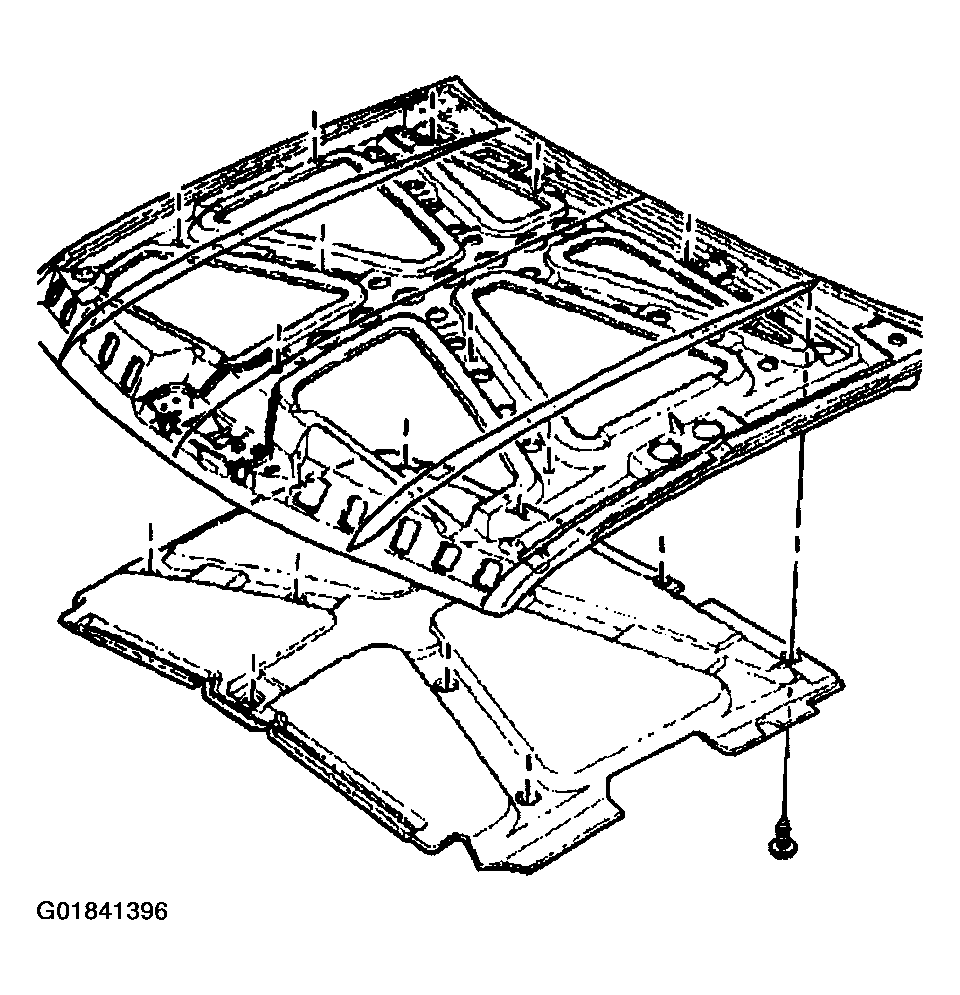

    Fig 1: Locating Hood Insulator Retainers
    G01841396Courtesy of GENERAL MOTORS CORP.
  2. Remove the insulator from the hood.
