Removal Procedure

  1. Raise the hood. Support the hood with something other than the prop rod.
  2. Remove the prop rod from the retainers.

    Pull the bottom of the rod toward you in order to release the rod from the bottom retainer.

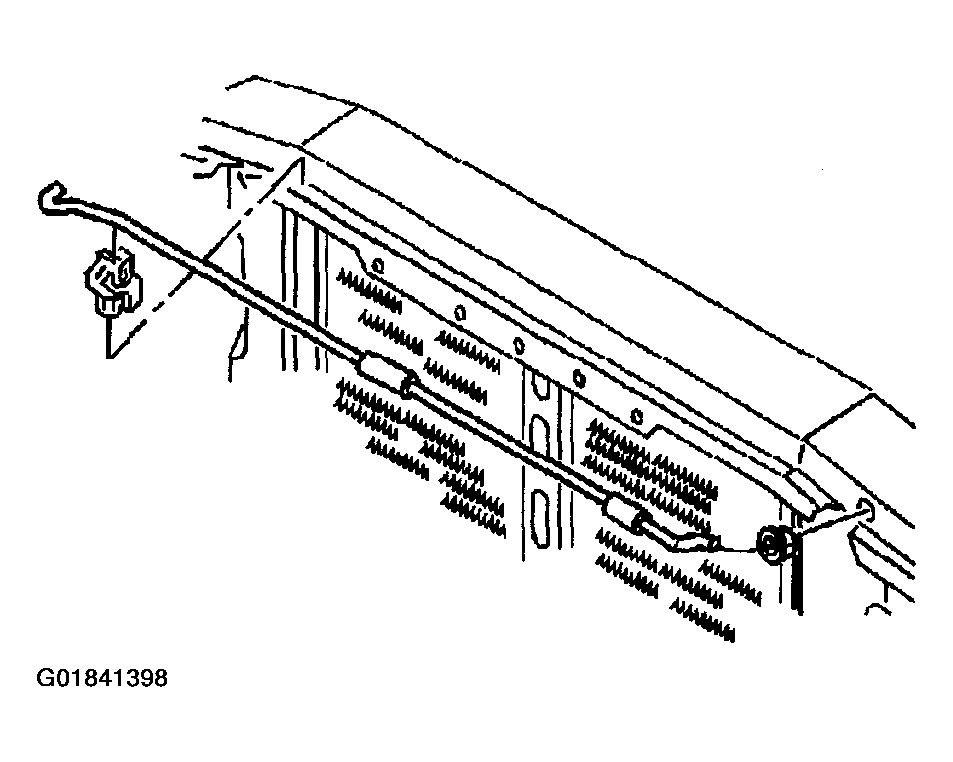

    Fig 1: Locating Hood Prop Rod Components
    G01841398Courtesy of GENERAL MOTORS CORP.
  3. Remove the retainers from the radiator support.
