Installation Procedure

  1. Install the retainers to the radiator support.
  2. Install the prop rod to the retainers.

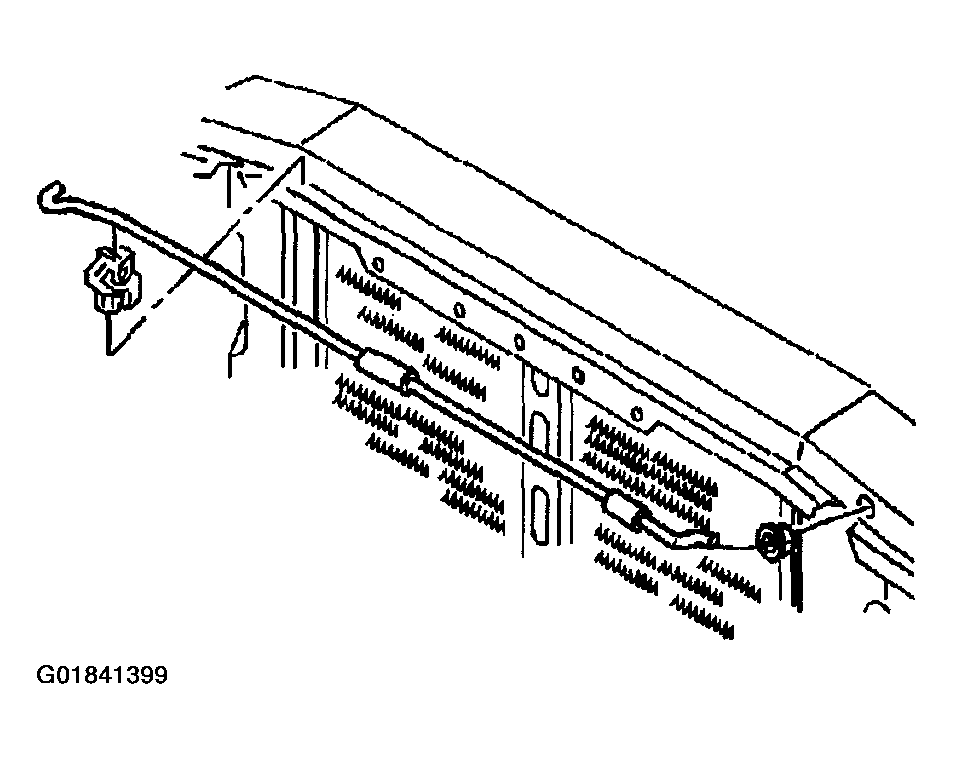

    Fig 1: Locating Hood Prop Rod Components
    G01841399Courtesy of GENERAL MOTORS CORP.
  3. Remove the temporary hood support.
