Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body Front End >> Repair Instructions >> Hood Bumper Replacement >> Removal Procedure

Removal Procedure

  1. Remove the front hood bumper by turning the front hood bumper (1) out counterclockwise.
  2. Remove the side hood bumper by sliding the side hood bumper (2) forward and pulling up.

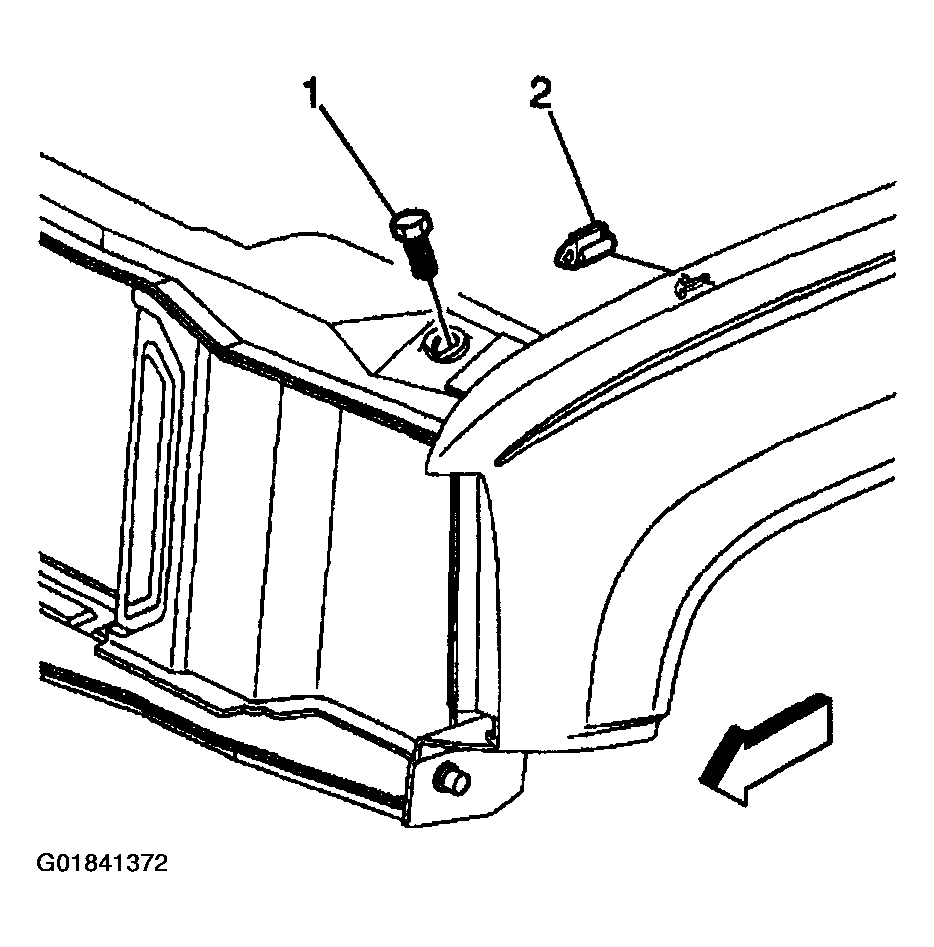

    Fig 1: Locating Side Hood Bumper
    G01841372Courtesy of GENERAL MOTORS CORP.
