Installation Procedure

  1. Install the side hood bumper by pushing down and sliding the side hood bumper (2) rearward.

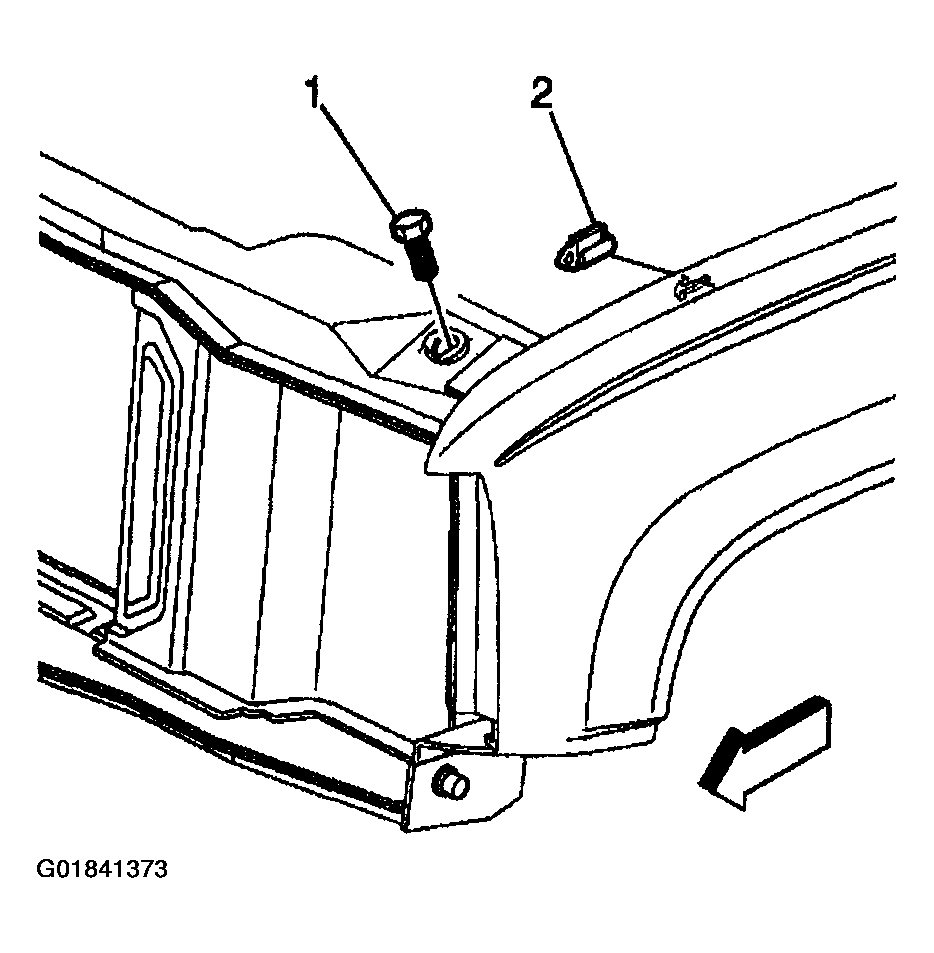

    Fig 1: Locating Side Hood Bumper
    G01841373Courtesy of GENERAL MOTORS CORP.
  2. Install the front hood bumper (1) by turning the front hood bumper in clockwise until the hood closes flush with the fender.
