Installation Procedure

  1. Install the hood adjust front bumper.

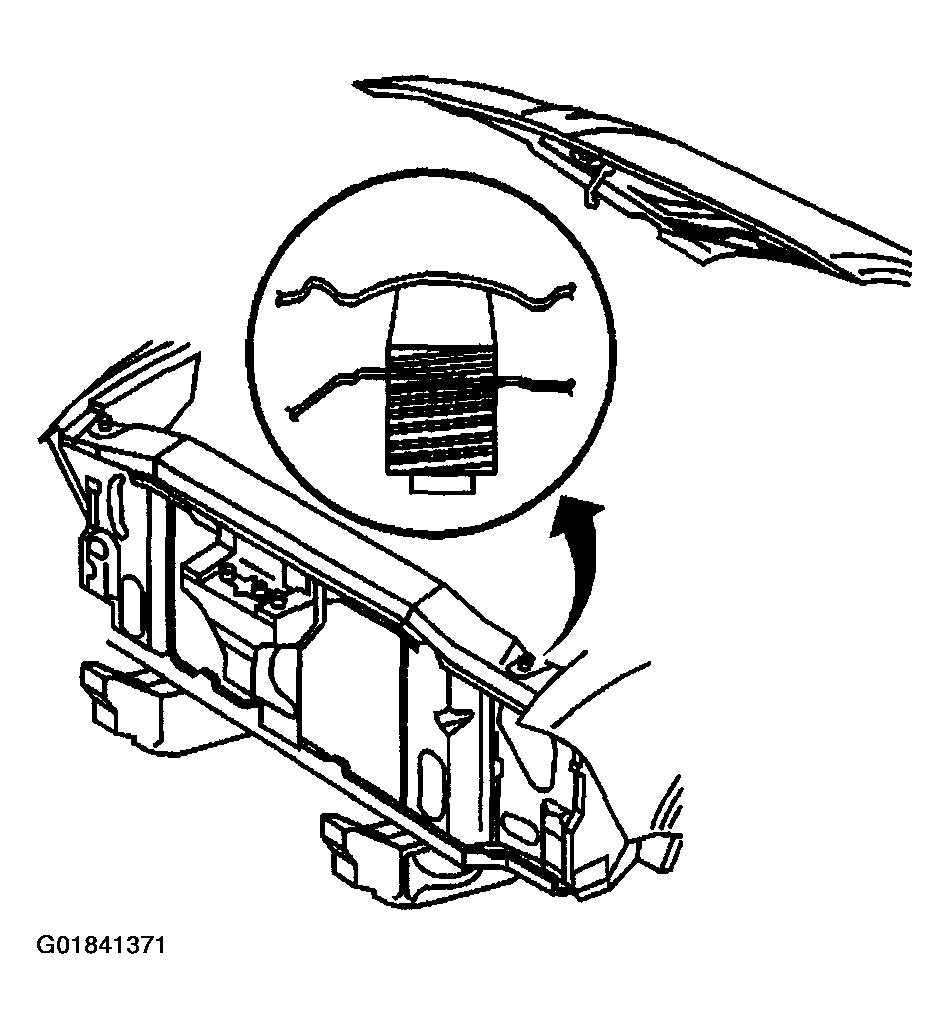

    Fig 1: Locating Hood Adjust Front Bumper
    G01841371Courtesy of GENERAL MOTORS CORP.
  2. Rotate the hood adjust front bumper clockwise until the hood adjust front bumper is at the same height as measured before removal.
  3. Inspect the hood panel assembly alignment. The top of the hood should be flush with the fenders and parallel to the grille.
  4. Rotate the bumper clockwise or counterclockwise in order to align the hood.
