Installation Procedure

  1. Install the radiator air intake baffle.
  2. Install the radiator air intake baffle retainers.
  3. Install the outside air temperature sensor. Refer to AMBIENT AIR TEMPERATURE GAGE SENSOR REPLACEMENT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  4. Install the radiator grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.

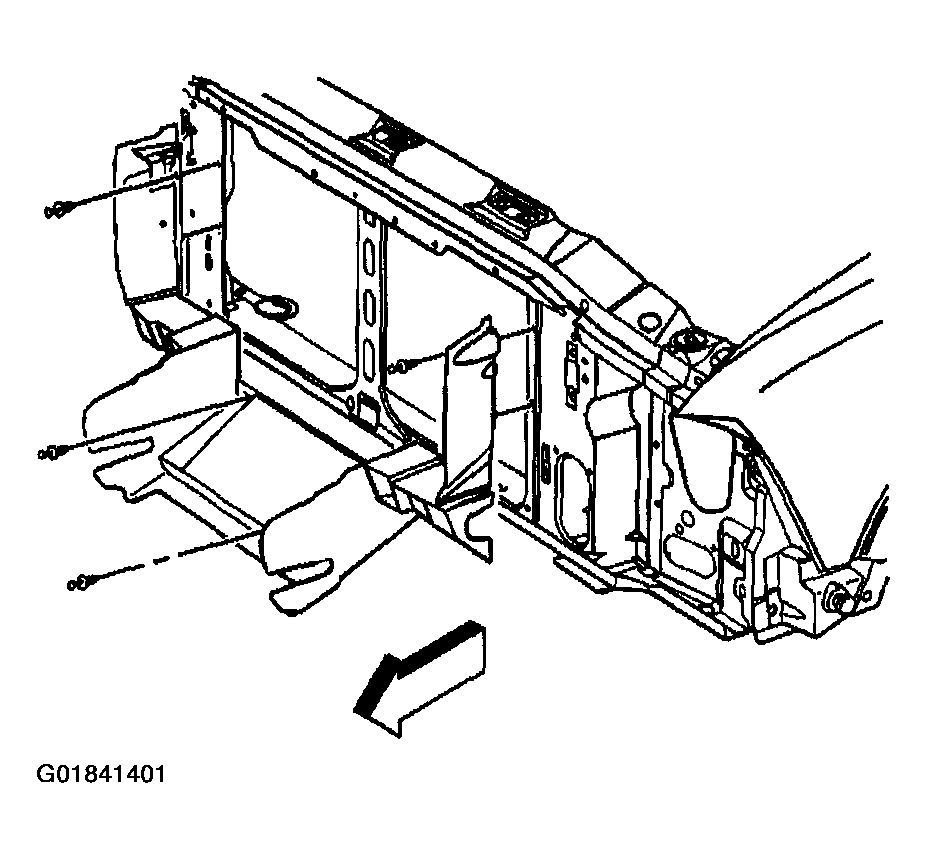

    Fig 1: Locating Radiator Air Intake Baffle
    G01841401Courtesy of GENERAL MOTORS CORP.
