Removal Procedure

  1. Raise and support the hood.
  2. Remove the bolt from the right and the left vent grille end panels.

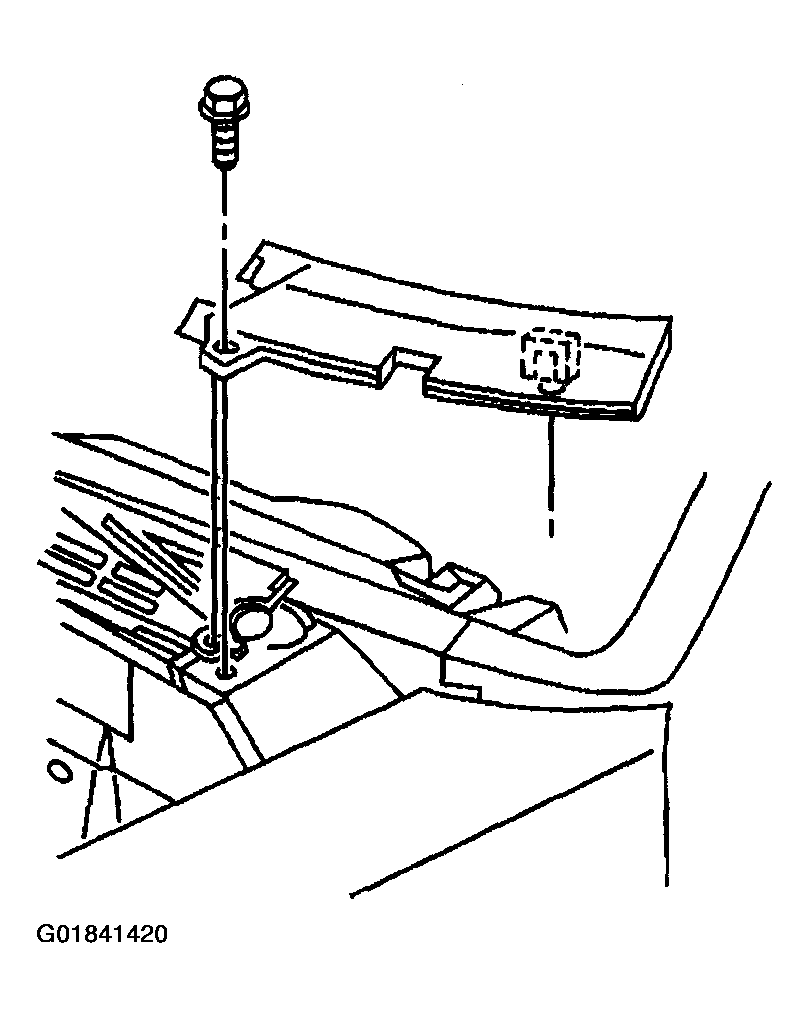

    Fig 1: Locating Right & Left Vent Grille End Panels Bolt
    G01841420Courtesy of GENERAL MOTORS CORP.
  3. Lift up on the right and the left vent grille end panels to release the retaining clips.
  4. Remove the right and the left vent grille end panels.
  5. Remove the screws that secure the center vent grille panel to the cowl.
  6. Remove the push-pin retainers that secure the center vent grille panel to the cowl.

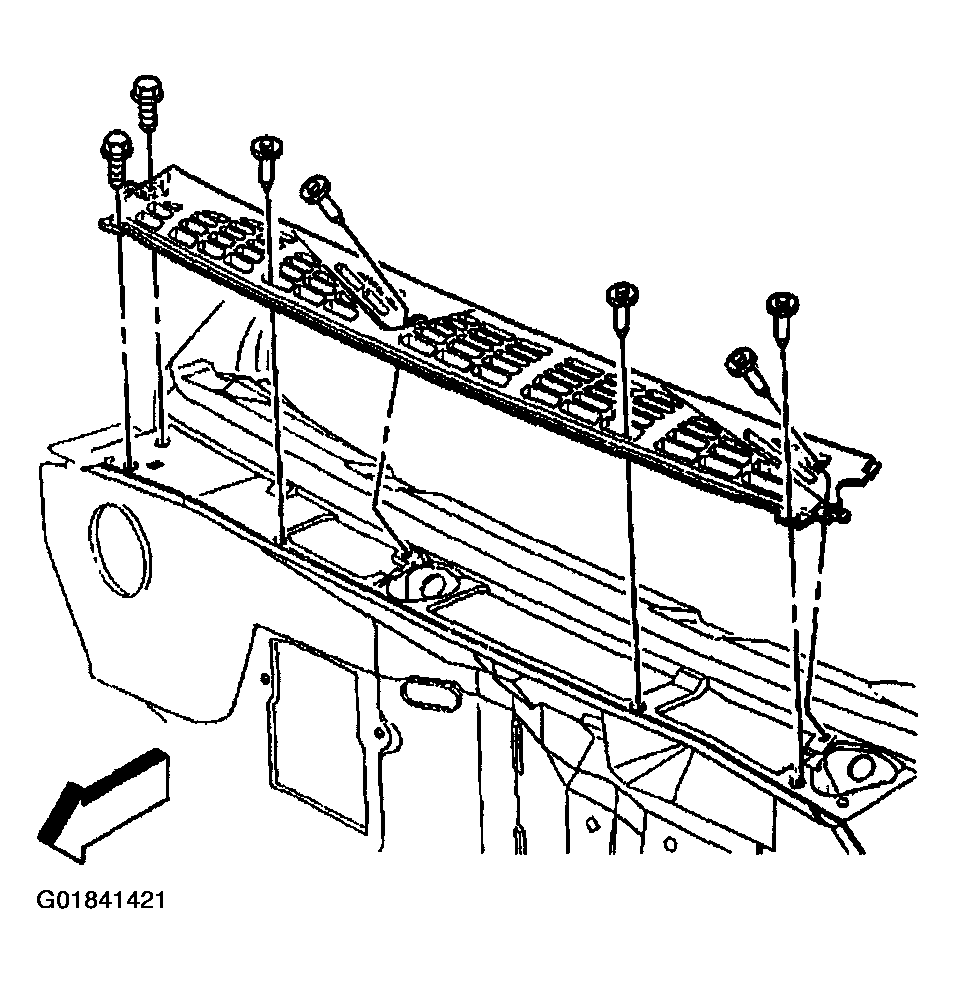

    Fig 2: Locating Center Vent Grille Panel-To-Cowl Push-Pin Retainers
    G01841421Courtesy of GENERAL MOTORS CORP.
  7. Remove the center vent grille panel from the cowl.

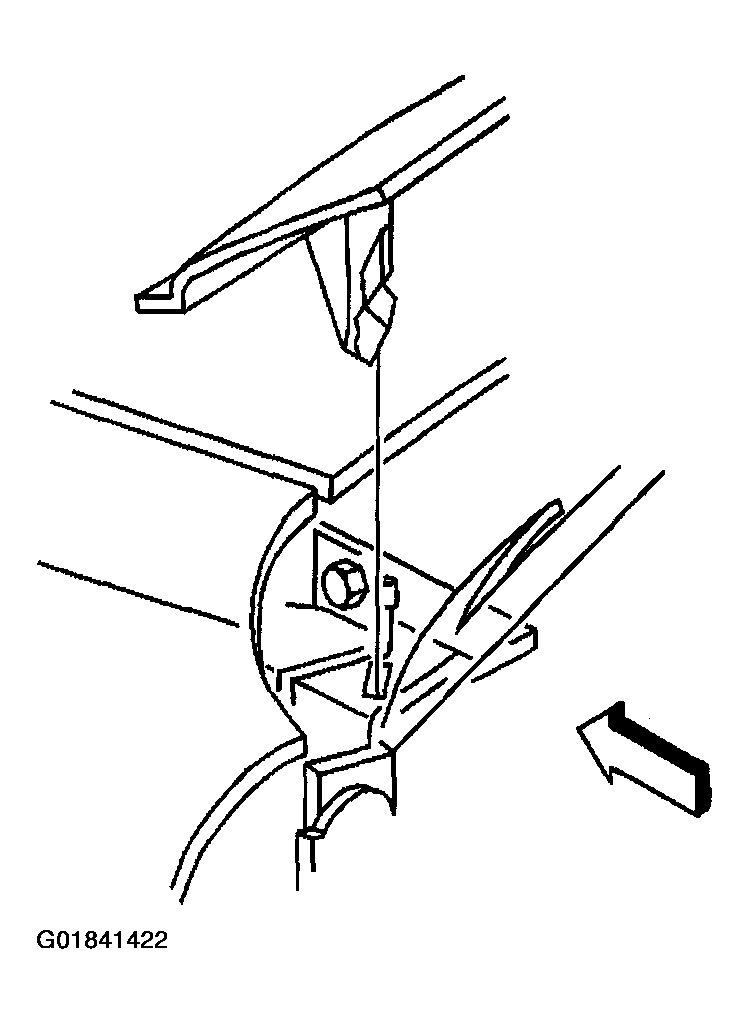

    Fig 3: Locating Cowl Center Vent Grille Panel
    G01841422Courtesy of GENERAL MOTORS CORP.
